BMC

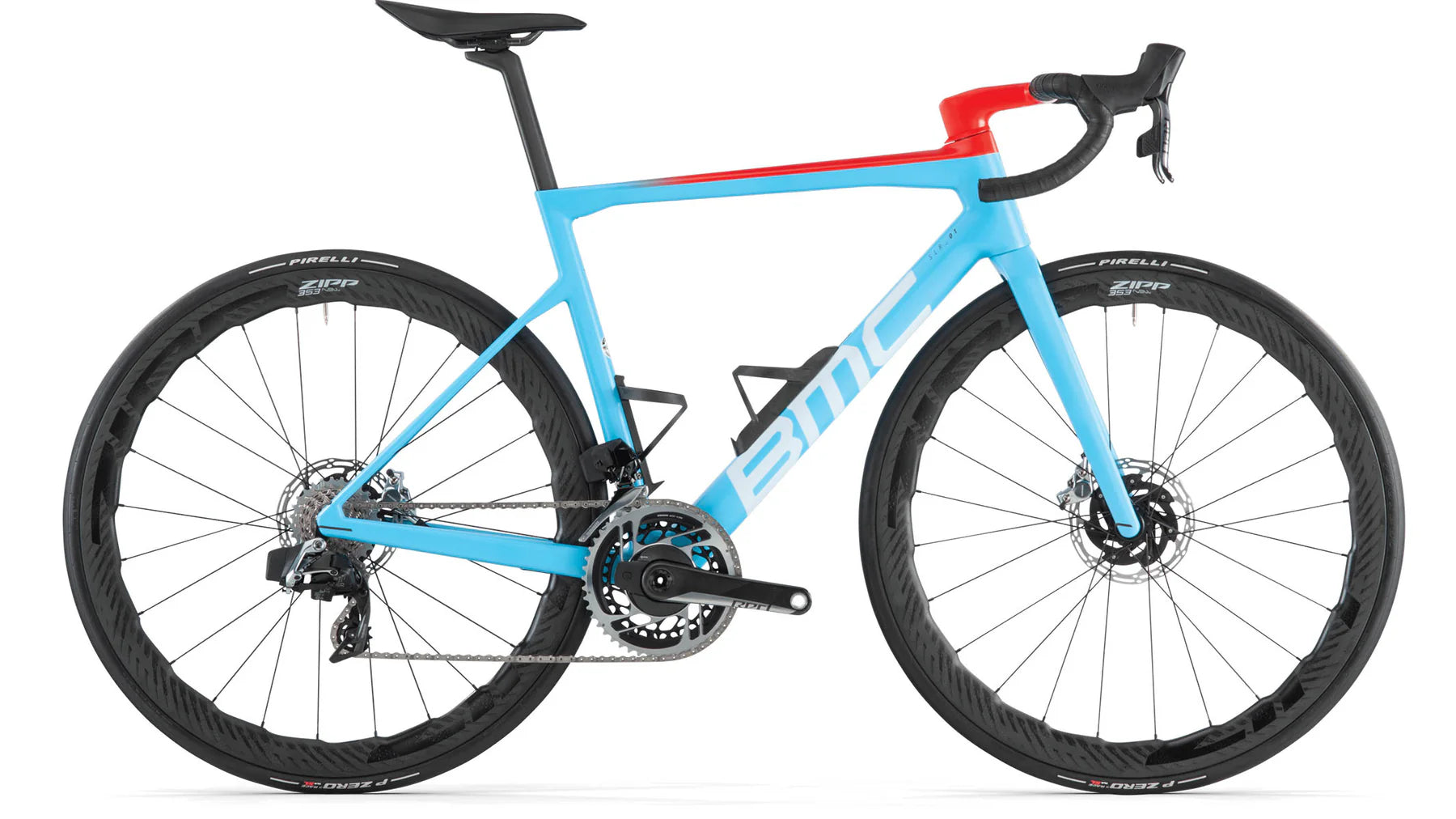

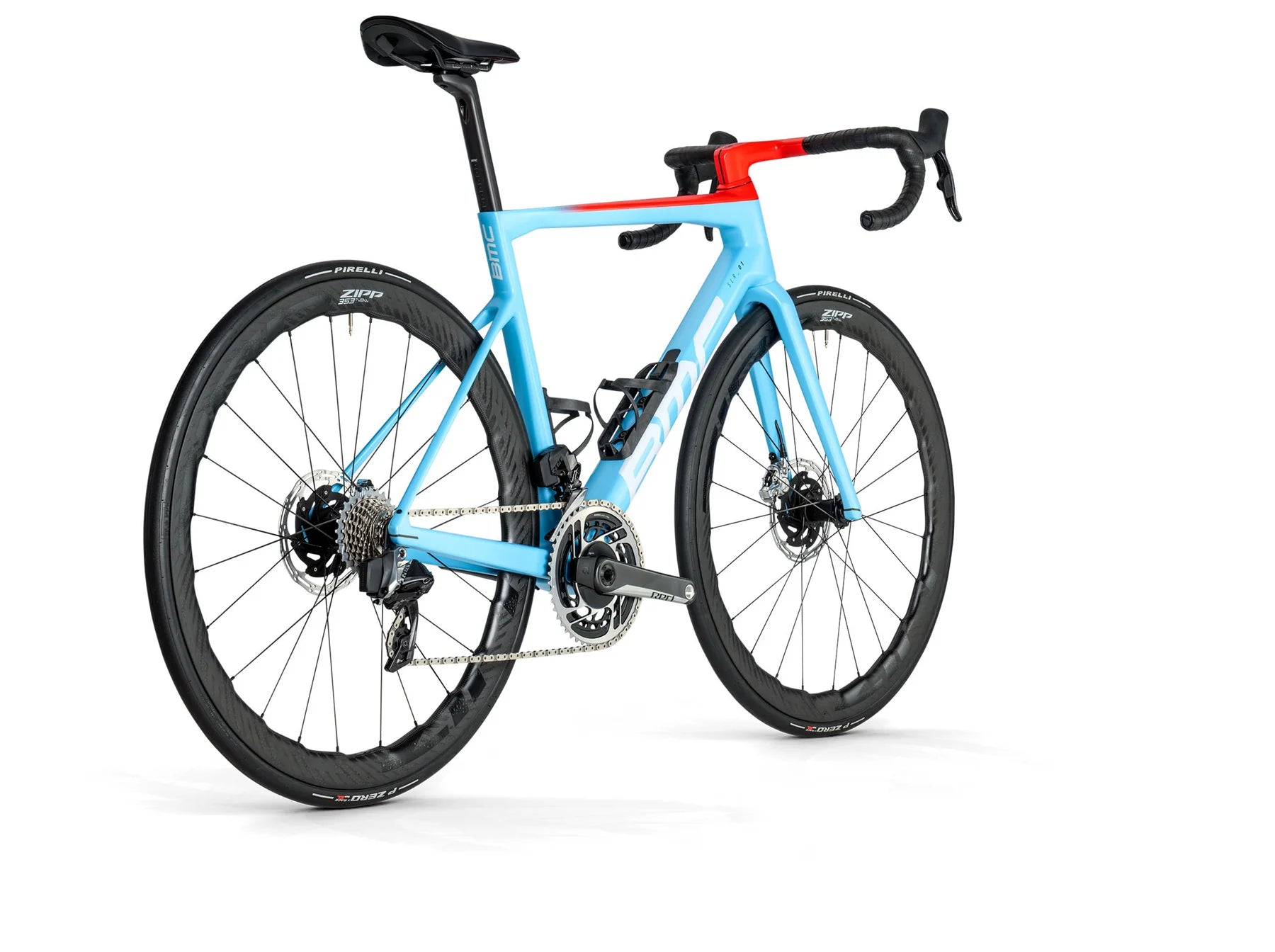

Teammachine SLR 01 ONE 2024

Teammachine SLR 01 ONE 2024

$11,399.00
$11,399.00
Sale Sold out
Taxes included.
Colors BLU/WHT/RED
Size
View full details
The original Teammachine SLR 01 created the blueprint for the modern road bike. After more than a decade of obsessive innovation and development, today’s world-beating Teammachine SLR 01 still leads where others follow. Its TCC Race-engineered Premium Carbon frame includes the Aerocore Design system, ICS technology and Stealth Cable Routing. With the ICS Carbon Evo Cockpit, the 12-speed SRAM RED AXS eTap groupset, powermetre cranks and the ultra-lightweight Zipp 353 NSW tubeless disc wheels with 28mm Pirelli PZero Race tires, it’s a climber's dream.

Frameset

Frame:
Teammachine SLR 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | TCC Race Compliance Level | Flat Mount Disc | 12 x 142mm Thru-Axle

Fork:
Teammachine SLR 01 Premium Carbon | ICS Technology Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle

Cockpit

Handlebar:
ICS Carbon Evo | One Piece Full Carbon Cockpit | 127mm drop, 70mm reach, 8° flarer

Seat

Seatpost:
Teammachine SLR 01 Premium Carbon D-Shaped Seatpost | 15mm Offset

Saddle:
Fizik Vento Argo R1 | 140mm

Drivetrain

Crankset:
SRAM Red AXS

Chainrings:
48-35T

Power Meter:
SRAM Red AXS Power Meter

Cassette:
SRAM Red (XG-1290)

Cassette Size:
10-28T

Chain:
SRAM RED

Front Derailleur:
SRAM RED eTap AXS

Rear Derailleur:
SRAM Red eTap AXS

Shifters:
SRAM Red eTap AXS

Gears:
2 x 12

Bottom Bracket:
PF86 Bottom Bracket

Brakes

Brake Levers / Calipers:
SRAM Red eTap AXS

Rotors:
SRAM Centerline XR | Centerlock

Rotor Size (F/R):
160 / 160mm

Wheels

Rims:
Zipp 353 NSW Tubeless Disc

Hubs (F/R):
Zipp Cognition V2 | Axial Clutch V2™

Tires:
Pirelli P-Zero Race SL TLR | 28mm

Tubeless Information:
Tubeless Ready Rims | Tubetype Tires

Accessories

In the Box:
Aerocore Bottle Cages

Additional Information

Tire Clearance:
30mm measured tire

Weight without Pedals:
6.7 Kg

ASTM Classification:
Level 1

System Weight Limit:
110kg

General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)

Disclaimer

Depending on the situation, differences or deviations between specified and installed components are possible. Alternatively, installed components correspond to the quality level of the selected components. Errors and omissions are excepted.
