NORCO Search C Rival XPLR 2026

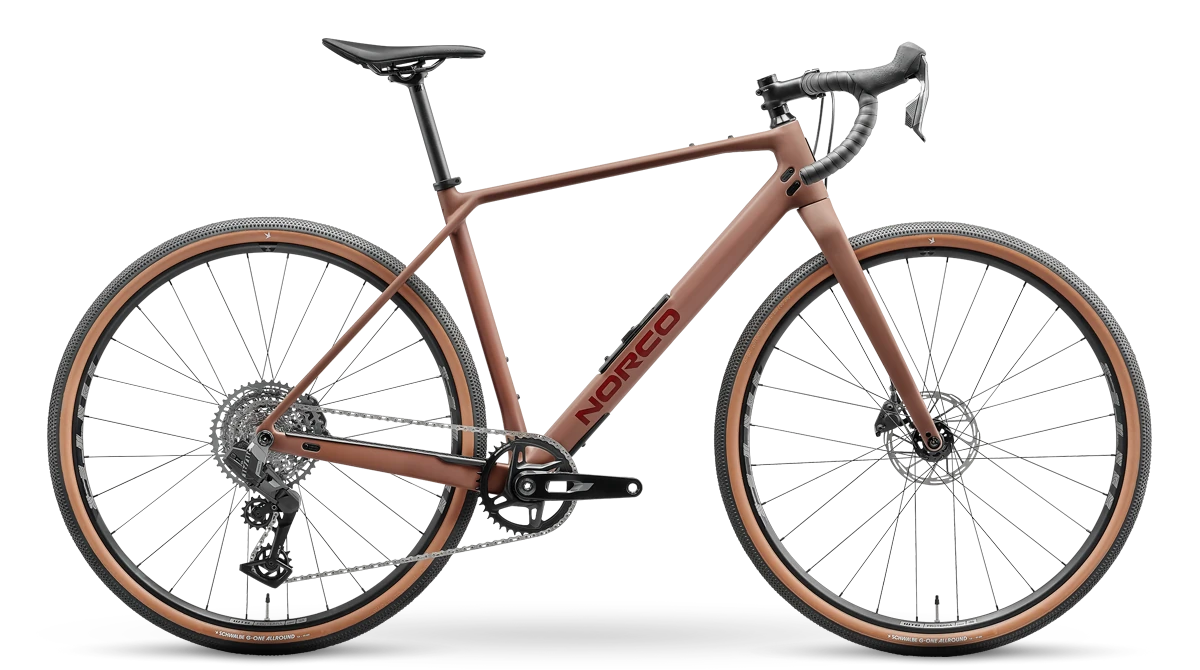

NORCO Search C Rival XPLR 2026

$5,399.00
$5,399.00 $5,999.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Colors Bronze
Size

Shipping & Pickup Options

  • Shipping: We ship Australia-wide. Shipping charges will be shown at checkout after you enter your address.
  • Pickup: Available at our store: 271 Smith St. Fitzroy VIC
View full details

Singletrack, dirt roads, city parks, even the most remote backcountry trails – are you roaming or racing? Search C Rival XPLR is ready for your next gravel adventure with modern gravel geo, a lightweight full carbon frame featuring Norco's proprietary downtube storage, SRAM Rival AXS XPLR drivetrain, tire clearance up to 50c, and full-coverage fender and toptube bag mounts.

A progressive, modern gravel bike for roaming or racing.

Search C Rival XPLR features new-school gravel geo fit for a fast, lively, confident ride on any terrain. With a taller headtube, slacker head angle, and longer reach, it’s more stable on rough terrain and ready to tackle steeper grades with ease.

The updated, longer fork adds stability and the new geometry is compatible with suspension forks if you want to add some extra cushion. The frame is UDH compatible and supports fitments for all the latest wide range 1x drivetrain technologies.

Fully guided cable routing and a fully threaded BSA bottom bracket makes maintenance a breeze.

Specs
DOWNLOAD SUPPORT DOCS
Norco MY25 Search Carbon - Assembler doc
Warranty
Owner's Manual
Bike Specifications are subject to change without notice. Specifications may not be exactly as shown in photo.

Frameset
Frame Search Carbon w/ DT Storage
Fork Search Carbon, 51mm Offset, 12x100mm TA
Drivetrain
Rear Shifter SRAM Rival AXS HRD Shift-Brake System
Rear Derailleur SRAM Rival XPLR AXS Rear Derailleur, 13sp
Front Shifter SRAM Rival AXS HRD Shift-Brake System
Crankset SRAM Rival XPLR 40T, 47.5CL, 170mm
Bottom Bracket SRAM Dub BSA 68 Road Wide
Cassette SRAM XPLR XG-1351, 10-46T, 13sp
Chain SRAM Rival Flat Top, 118L
Brakes
Front Brake SRAM Rival AXS E1 HRD Shift-Brake System
Front Brake Rotor SRAM Paceline, 160mm, 6-Bolt
Rear Brake SRAM Rival AXS E1 HRD Shift-Brake System
Rear Brake Rotor SRAM Paceline, 160mm, 6-Bolt
Brake Levers SRAM Rival AXS HRD Shift-Brake System
Components
Handlebar Norco Super Flare Aluminum Compact, 40cm (S1,S2) - 42cm (S3) - 44cm (S4) - 46cm (S5), 16 Degree
Stem Norco SL Alloy 70mm Length, 31.8mm Clamp
Seatpost Norco Alloy, 27.2mm, 12Deg Offset, 350mm length
Headset Sealed Cartridge Bearings, Tapered 1-1/8" - 1.5" ( IS42/28.6 | IS52/40 )
Saddle Fizik Vento Argo X5
Grips Griptacular Shockproof Tape 3mm
Seatpost Clamp Norco Aluminum, 31.8mm ID
Wheels
Front Hub WTB Frequency, 12X100mm, 28h, 6-Bolt
Rear Hub WTB Frequency, 12X142mm, XDR, 28h, 6-Bolt
Rims WTB Proterra Light i25 TCS 2.0 alloy, 28h, 25mm ID
Front Tire Schwalbe G-One R Evo, Super Race, 700x45c
Rear Tire Schwalbe G-One R Evo, Super Race, 700x45c
Spokes/Nipples Double Butted, Black Alloy
Valves WTB TCS Tubeless Valve, Brass
Sealant WTB TCS Tubeless Tire Sealant, 8oz/236ml
Rim Tape WTB TCS 2.0 Solid Strip
Weight
Weight S3 - 9.38kg

Disclaimer

Depending on the situation, differences or deviations between specified and installed components are possible. Alternatively, installed components correspond to the quality level of the selected components. Errors and omissions are excepted.
