NORCO

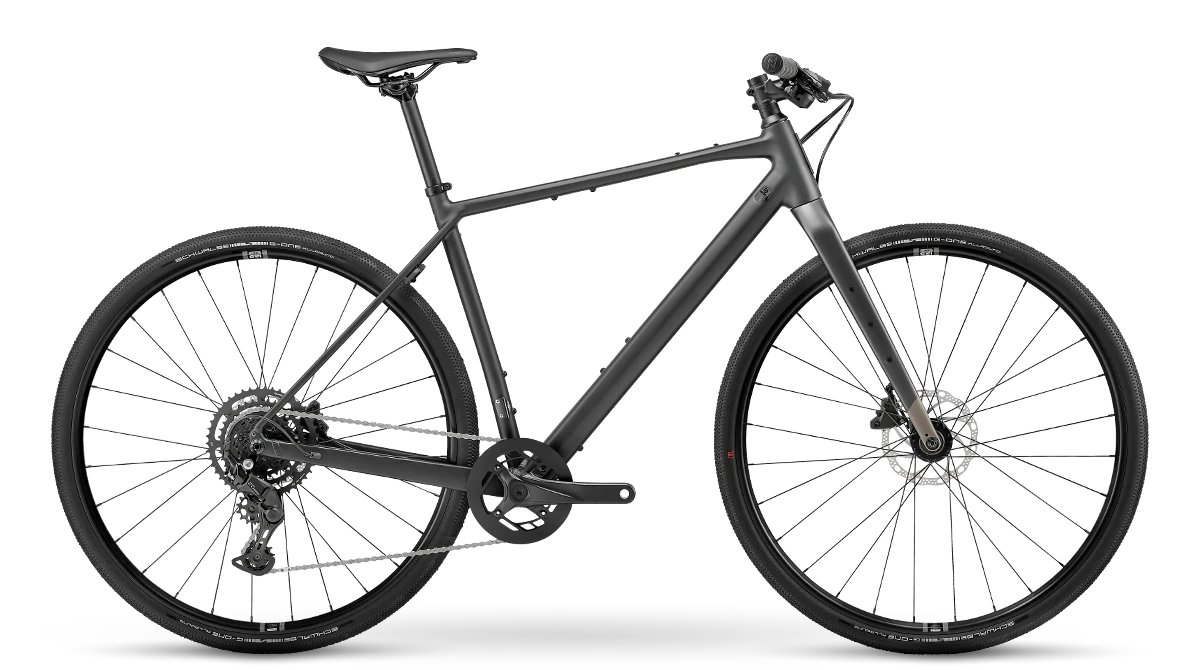

NORCO SEARCH A Flat Bar

NORCO SEARCH A Flat Bar

$1,499.00
$1,499.00 $1,689.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Colors BLACK
Size

Shipping & Pickup Options

  • Shipping: We ship Australia-wide. Shipping charges will be shown at checkout after you enter your address.
  • Pickup: Available at our store: 271 Smith St. Fitzroy VIC
View full details

Singletrack, dirt roads, city parks, even the most remote back country trails – are you roaming or racing? If drops aren't your thing but you want the freedom of gravel riding, Search A Flat Bar is ready for your next adventure with modern gravel geo, a lightweight aluminum frame, carbon fork with adventure mounts, Shimano CUES 1x9 drivetrain, tire clearance up to 50c, and full-coverage fender, toptube bag, and water bottle mounts..

Specs
DOWNLOAD SUPPORT DOCS
Norco MY25 Search Aluminum - Tech/Assembler Document
Warranty
Owner's Manual
Bike Specifications are subject to change without notice. Specifications may not be exactly as shown in photo.

Frameset
Frame Search Butted Aluminum w/Smooth Welds
Fork Search Carbon, 51mm Offset, 12x100mm TA
Drivetrain
Rear Shifter Shimano CUES SL-U4000 Rapid Fire
Rear Derailleur Shimano CUES RD-U4000
Crankset Prowheel, 38T, ST, 170mm (S1,S2,S3,S4) - 172.5mm (S5)
Bottom Bracket Shimano Cartridge Bearing, 68mm BSA
Cassette Shimano CS-LG300, 11-46T, 9sp
Chain KMC Z9
Brakes
Front Brake Tektro HD-R280 Hydraulic
Front Brake Rotor Tektro 6-Bolt - 160mm
Rear Brake Tektro HD-R280 Hydraulic
Rear Brake Rotor Tektro 6-Bolt - 160mm
Brake Levers Tektro HD-R280 Hydraulic Hydro 3-Finger Levers w/ Reach Adjust
Components
Handlebar Norco Alloy, 620mm (S1,S2) 640mm (S3,S4,S5), 15mm rise
Stem Norco Alloy 70mm Length, 31.8mm Clamp
Seatpost Aluminum 27.2mm
Headset FSA Integrated Sealed Bearings No. 42 ; Tapered 1-1/8" - 1.5" ( IS42/28.6 | IS52/40 )
Saddle Selle Royale SRX Gravel, 148mm
Grips Norco Lock On, 130 length
Seatpost Clamp Aluminum Bolted 31.8mm
Wheels
Front Hub Formula, 12x100mm, 28H, 6-Bolt
Rear Hub Formula, 12x142mm, HG, 28h, 6-Bolt
Rims WTB ST i25 2.0, 28h, 25mm ID
Front Tire Schwalbe G-One Comp, K-Guard Recyclable, 700x40c
Rear Tire Schwalbe G-One Comp, K-Guard Recyclable, 700x40c
Spokes/Nipples Sapim Leader 2.0mm - Black w/Black Brass Nipples
Weight
Weight 12.6 kg (27.8 lbs)
Weight Size S3

Disclaimer

Depending on the situation, differences or deviations between specified and installed components are possible. Alternatively, installed components correspond to the quality level of the selected components. Errors and omissions are excepted.
