MERIDA BIG.NINE 20

MERIDA BIG.NINE 20

$779.00
$779.00
Sale Sold out
Taxes included.
Colors BLACK
Size
View full details

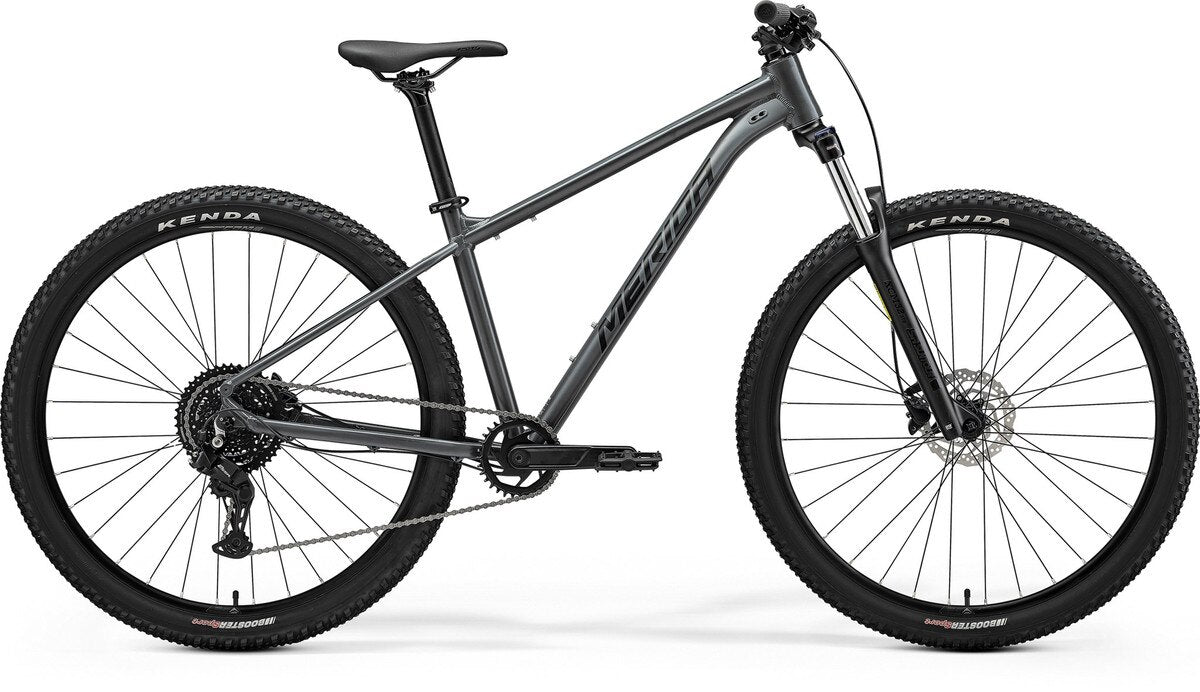

The Merida Big.Nine 20 is a versatile hardtail mountain bike featuring a durable aluminum frame and a Suntour 100mm travel fork with lockout. It is equipped with a reliable Shimano Essa 1x8 drivetrain, making it suitable for both trails and urban paths. The bike's powerful hydraulic disc brakes ensure effective stopping power in various conditions, while its upright riding position enhances comfort and control.

SEASON 2025
BOTTOM BRACKET Shimano BB-UN101 73-123
CHAIN KMC Z8.3
CHAINWHEEL Shimano ESSA FC-U2001 32 ATC; MAT Aluminium
CRANKSET 170 mm-S, 175 mm-M up
DERAILLEUR REAR Shimano ESSA RD-U2000-8; GS
FORK SR Suntour XCT30 HLO; Coil; 100 STR; lockout; max. 29x2,25" WHS
FRAME BIGNINE TFS IV MAT aluminum 29x225 max WHS 135x9 AST BSA BBR
FREEWHEEL Shimano CS-HG400-8; 11-45 ATC; 8 GER
GRIP MERIDA EC
HANDLEBAR MERIDA CC; MAT aluminium; 690 WHB; 15 RHB
HANDLEBAR STEM MERIDA CC; MAT aluminium; 31.8 DSH; 6 ASD
HEADSET MERIDA M2345
PEDALS VP VPE-891
RIM MERIDA CC; 17 IWR; MAT aluminium
ROTOR FRONT Shimano RT10; 160 mm
ROTOR REAR Shimano RT10; 160 mm
SADDLE MERIDA Sport comfort
SEAT CLAMP MERIDA COMP QR
SEAT POST MERIDA CC; 30.9 DSP; 15 SSB; MAT aluminium
TYRE FRONT MERIDA K1080; 29x2.2"; wire
TYRE REAR MERIDA K1080; 29x2.2"; wire
FEATURES

  • Aluminium frame
  • 100mm travel Suntour XCT30 fork with lockout
  • Tektro hydraulic disc brakes
  • Shimano Essa 1x8 drivetrain

Disclaimer

Depending on the situation, differences or deviations between specified and installed components are possible. Alternatively, installed components correspond to the quality level of the selected components. Errors and omissions are excepted.
