Rocky Mountain

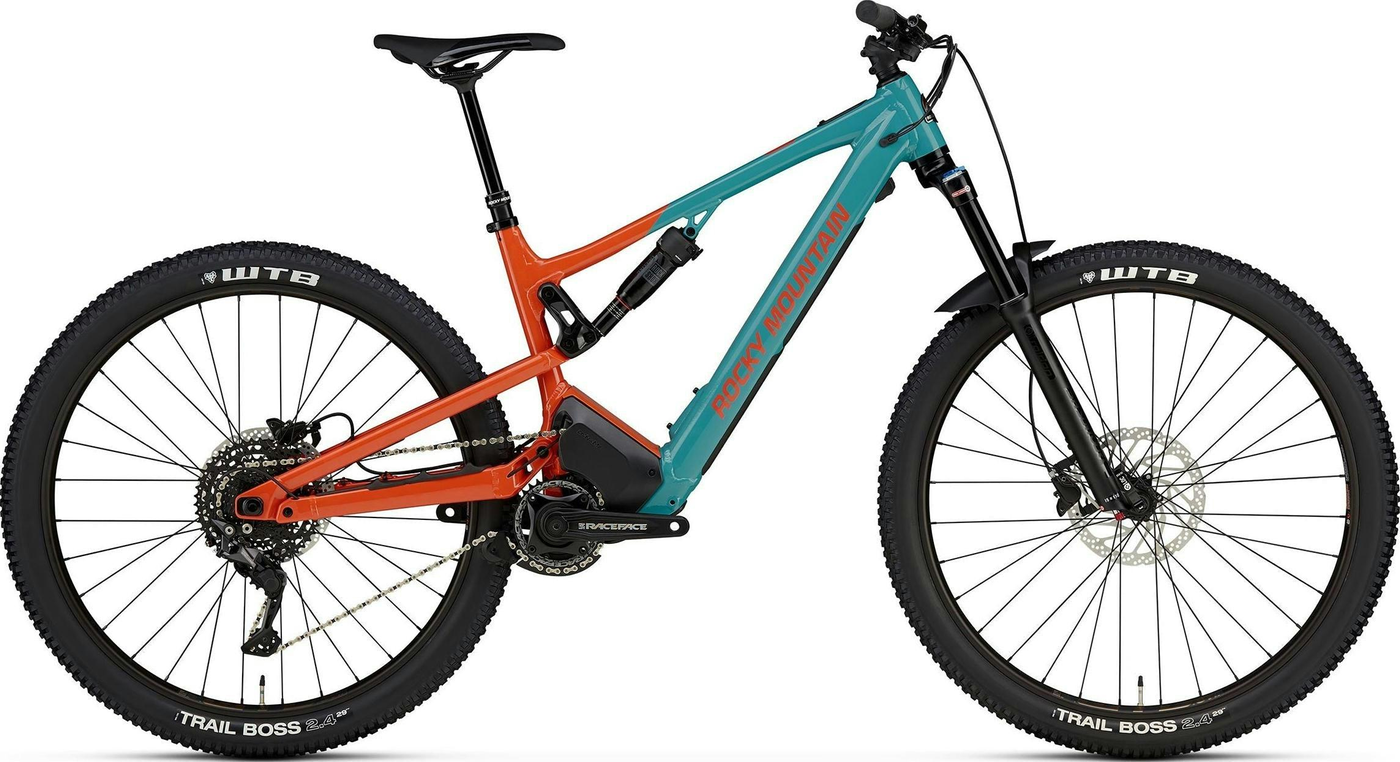

Instinct Powerplay Alloy 10
Instinct Powerplay Alloy 10
If you’re looking for one bike that does it all, look no further than the Instinct. We’ve designed a bike that’s capable of tackling technical trail riding but still allows you to push the pedals hard on the climbs. We’ve updated the geometry, frame features, and suspension kinematics to make sure you feel confident on the up’s, down’s, and everything in between. Trust your Instinct.
Brakes
Brake
Shimano MT200 2 Piston | Resin Pads | F:Shimano RT30 203mm | R:Shimano RT30 203mm
Cockpit
Stem
Rocky Mountain 31.8 AM | 5° Rise | All Sizes = 40mGrips
Rocky Mountain Lock On LightHeadset
FSA Orbit NO.57E Extend-o-maticHandlebar
Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 ClampDisplay
Rocky Mountain Jumbotron | Drive System Customization | Battery & Assist Level | Trip | Speed | Cadence | Top Tube Integration
General
Frame
FORM™ Alloy | Integrated Display | Mid-High Pivot Smoothlink Suspension System | Press Fit BB | 2-Bolt ISCG05 Tabs | RIDE-9™ Adjustable Geometry + Suspension Rate | 140mm Travel. FORM™ Alloy Rear Triangle
Groupset
Cassette
Sunrace CSMS2 11-46T
Shifters
Shimano Deore 10spd
Bottom Bracket
Shimano Deore 10spd
Rear Derailleur
Shimano Deore 10spd
Motor & Battery
Battery
720 Wh Removable Integrated Li-Ion | 100% Charged in 3:55 (4A) / 7:35 (2A) | 80% Charged in 2:55 (4A) / 6:05 (2A)
Charger
Rocky Mountain Powerplay Charger | 2A | 48V | Higo Deep Socket Connector | Overtimepack Compatible (Dyname 4)
Battery Capacity
720 Wh
Maximum Motor Support
up to 25 kph
Wheels & Tires
Tires
F: WTB Trail Boss Comp 29 x 2.4 // R: WTB Trail Boss Comp 29 x 2.4
Wheel Size
29
Wheels
Rocky Mountain TR30 Tubeless | 32H | Tubeless Ready - Tape / Valves Incl
Front Hub
Rocky Mountain Sealed Boost 15mm
Rear Hub
Novatec D462 Sealed Boost 148mm
Tire
F: WTB Trail Boss Comp 29 x 2.4 // R: WTB Trail Boss Comp 29 x 2.4
Saddle
Saddle
Rocky Mountain 148 Steel
Seat Post
Rocky Mountain Toonie Drop Composite 30.9mm | SM = 125mm | MD = 150mm | LG - XL = 170mm
Suspension
Fork
Suntour Raidon 34 LOR Air Boost 140mm
Shock
RockShox Deluxe Select R | Sealed Bearing Eyelet | 25x8mm F Hardware | All Sizes = 210x55mm | Size-Specific tune in FAQ
Front suspension
140mm
Fork type
suspension fork
Fork Manufacturer
SR Suntour
Disclaimer
Depending on the situation, differences or deviations between specified and installed components are possible. Alternatively, installed components correspond to the quality level of the selected components. Errors and omissions are excepted.
