Rocky Mountain

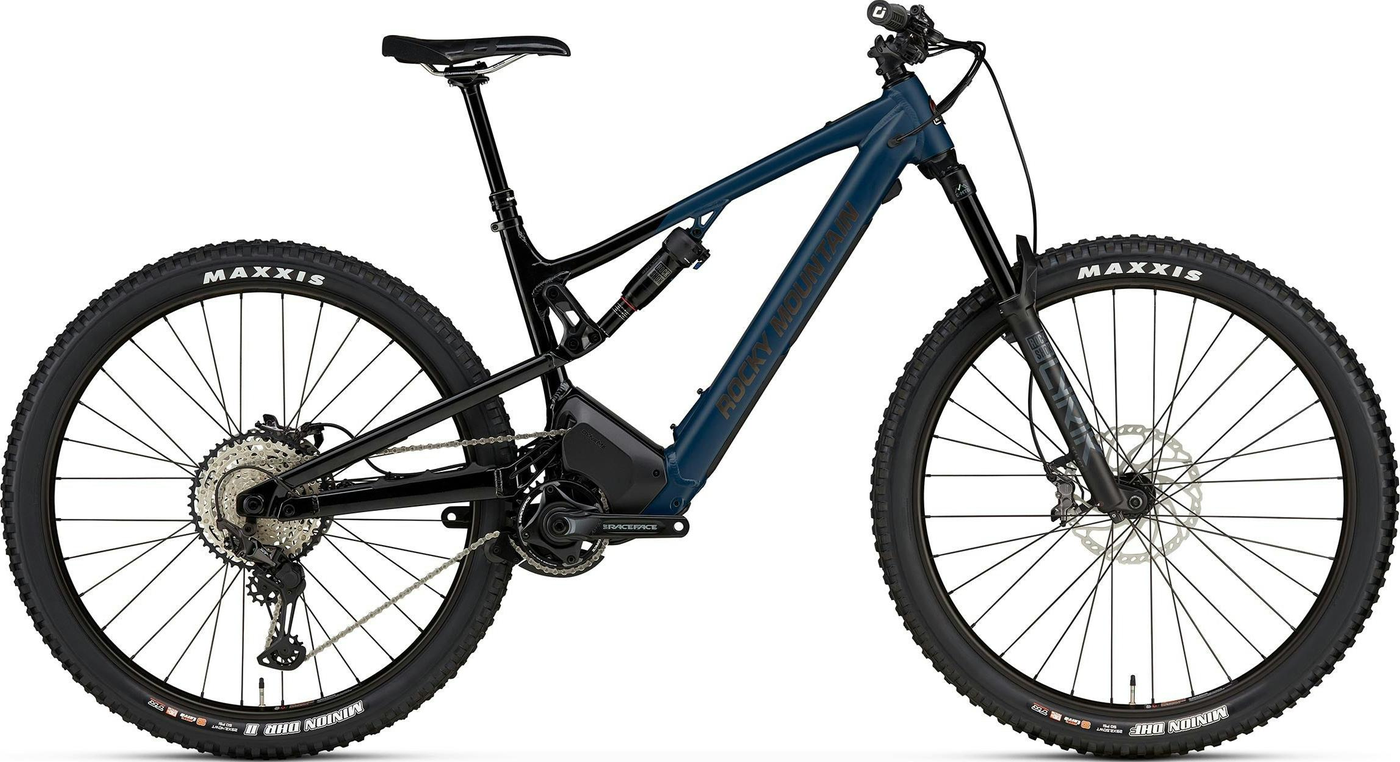

Instinct Powerplay A70
Instinct Powerplay A70
If you’re looking to venture into the alpine or explore a new zone, the Instinct Powerplay will inspire you to go farther and seek out new adventures.
Brakes
Brake
Shimano XT Trail 4 Piston | Metal Pads | F:Shimano RT66 203mm | R:Shimano RT66 203mm
Cockpit
Stem
Rocky Mountain 35 AM | 5° Rise | All Sizes = 40mGrips
ODI Elite Pro Lock OnHeadset
FSA Orbit NO.57E | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown RaceHandlebar
Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 35 ClampDisplay
Rocky Mountain Jumbotron | Drive System Customization | Battery & Assist Level | Trip | Speed | Cadence | Top Tube Integration
General
Frame
FORM™ Alloy | Integrated Display | Mid-High Pivot Smoothlink Suspension System | Press Fit BB | 2-Bolt ISCG05 Tabs | RIDE-9™ Adjustable Geometry + Suspension Rate | 140mm Travel. FORM™ Alloy Rear Triangle
Groupset
Cassette
Shimano SLX 10-51T
Shifters
Shimano XT
Bottom Bracket
Shimano SM-BBMT500
Rear Derailleur
Shimano XT
Motor & Battery
Battery
720 Wh Removable Integrated Li-Ion | 100% Charged in 3:55 (4A) / 7:35 (2A) | 80% Charged in 2:55 (4A) / 6:05 (2A)
Charger
Rocky Mountain Powerplay FAST Charger | 4A | 48V | Higo Deep Socket Connector | Overtimepack Compatible (Dyname 4)
Wheels & Tires
Tires
F: Maxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready
Wheel Size
29.0
Wheels
WTB ST i30 TCS 2.0 Tubeless | 32H | Tubeless Ready - Tape / Valves Incl
Front Hub
Rocky Mountain Sealed Boost 15mm
Rear Hub
DT Swiss Hybrid 370 Boost 148mm | 18T Star-Ratchet
Tire
F: Maxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready
Saddle
Saddle
WTB Volt Race 142
Seat Post
Race Face Aeffect R Dropper 30.9mm | Shimano MT500 Remote | SM = 125mm | MD = 150mm | LG - XL = 175mm
Suspension
Fork
RockShox Lyrik Select RC 150mm | 42mm Offset
Shock
RockShox Deluxe Select+ | Sealed Bearing Eyelet | 25x8mm F Hardware | All Sizes = 210x55mm | Size-Specific tune in FAQ
Disclaimer
Depending on the situation, differences or deviations between specified and installed components are possible. Alternatively, installed components correspond to the quality level of the selected components. Errors and omissions are excepted.
