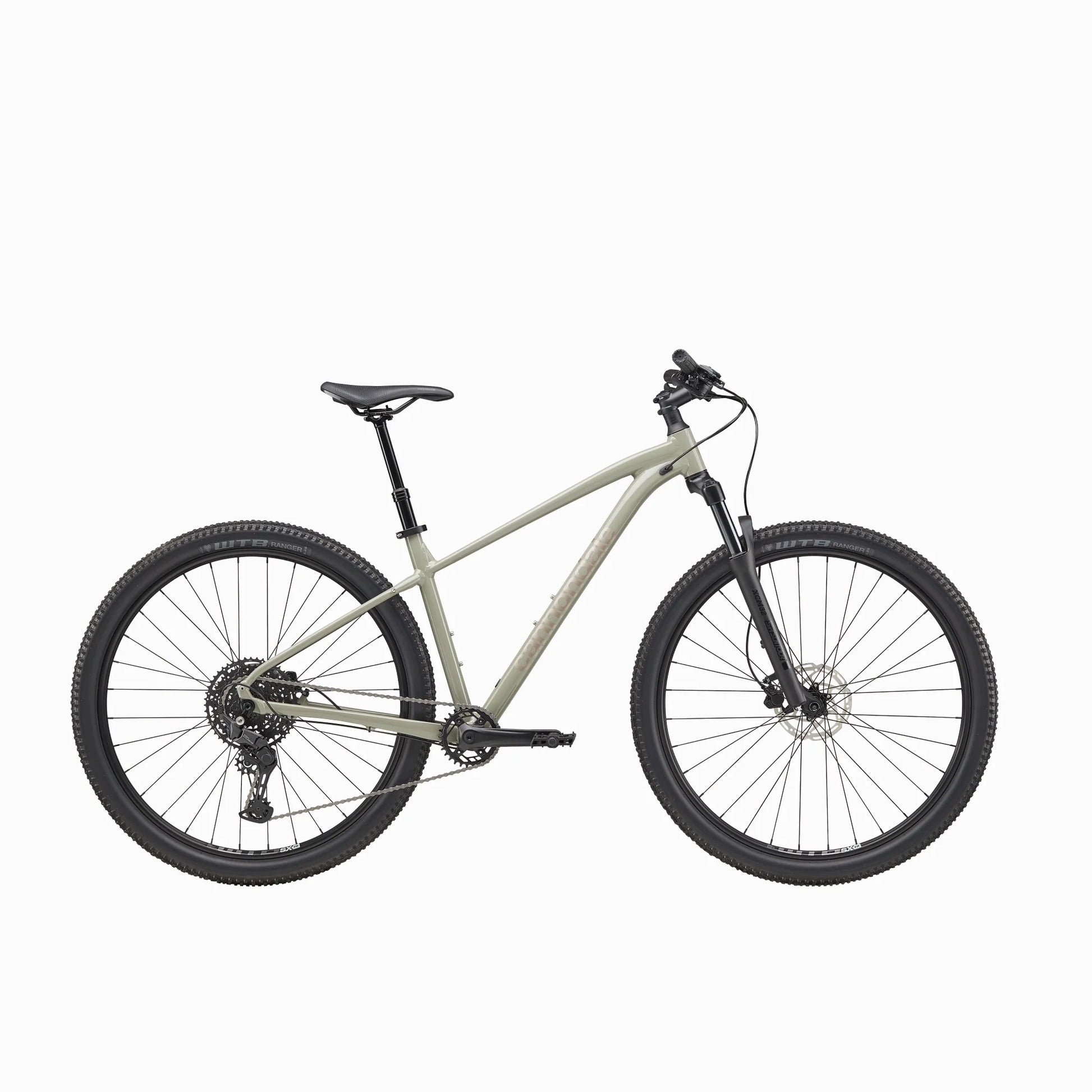

Cannondale Trail 1

Trail 1 blends Cannondale’s 50 years of alloy expertise with modern trail capability. The SmartForm C3 alloy frame delivers a ride that’s light and responsive, while the SR Suntour XCM32 fork with 100mm travel (80mm on XS and Small sizes) takes care of the bumps so you can focus on the fun. Shimano’s CUES 10-speed drivetrain makes shifting smooth and reliable, and Tektro hydraulic disc brakes bring confidence to every descent. With a 130mm dropper post for instant seat adjustments, Trail 1 is proof that decades of innovation can deliver first-class performance, one ride at a time.

What it's for
Trail riding, light commuting, bopping around town, and having a blast.

Highlights
A lightweight, durable SmartForm C3 Alloy frame
29” wheels on the larger sizes, 27.5” wheels on XS and Small for the best blend of fit and speed
Bump-eating SR Suntour XCM32 Boost fork with 100mm of travel (80mm on XS and Small sizes)
Shimano CUES U6000 10-speed shifting - wide range gearing with the simplicity of a single front chainring
A hidden kickstand mount, plus mounts for a rack and fenders, offer true do-it-all versatility

Frame
Trail, SmartForm C3 Alloy, 142x12mm, SAVE, 1-1/8" headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, KickFlip hidden 18mm 2-bolt kickstand mount port, BSA-73, 27.5" wheels (XS, S) / 29" wheels (M, L, XL)
Fork
SR Suntour XCM Boost, coil, 100mm travel, 46mm offset (29"), 80mm travel, 42mm offset (27.5")
Headset
Semi-Integrated, 1-1/8"
Drivetrain
Rear Derailleur
Shimano CUES U6000
Shifters
Shimano CUES U6000, 10-speed
Chain
KMC X10, 10-speed
Crank
Prowheel, Charm 30T
Rear Cogs
Shimano CUES, 11-48, 10-speed
Bottom Bracket
ProWheel, square taper
Brakes
Brakes
Tektro M275 hydraulic disc, 160/160mm rotors
Brake Levers
Tektro hydraulic disc
Wheels
Front Hub
Shimano TC500, 15x110mm
Rear Hub
Shimano TC500, 12x142mm
Rims
WTB SX19, 32h
Spokes
Stainless Steel, 14g
Tire Size
2.25
Wheel Size
27.5/29
Tires
Trail Boss 27.5x2.25" (XS,S) / 29x2.25" (M, L, XL) Comp, 30 TPI
Components
Handlebar
Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 720mm
Stem
Cannondale 4, 6061 Alloy, 31.8, 6°
Grips
Cannondale
Saddle
Cannondale Trail
Seatpost
JD Dropper, internal routing, 31.6, 130mm
