Cannondale

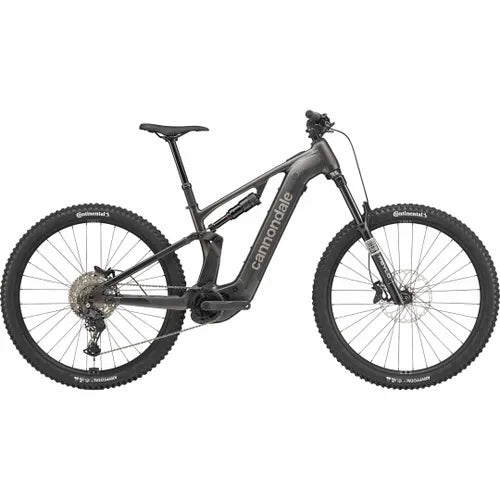

Cannondale Moterra 3

Cannondale Moterra 3

$7,189.00
$7,189.00 $9,999.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Colors Gray
Size
View full details

More Juice, No Excuse

The Moterra packs massive power, range, and silky suspension, handling rugged terrain like a luxury off-roader. Built to go further—faster.

Model Description

Rugged, responsive, and ready for anything—Moterra 3 has everything needed to tackle big days on the trail. The 150mm travel SmartForm C1 Alloy frame, huge 800Wh battery, and Bosch’s most powerful CX motor make short work of long climbs. A 160mm RockShox Psylo Silver RC fork and Deluxe Select shock ensure a controlled, responsive ride, while Shimano CUES U6000 shifting and MT520 4-piston brakes provide reliability you can count on. Ready to roll with WTB/Shimano wheels, it’s a no-nonsense trail companion.

What it's for

Endless spins, uphill wins, and permanent grins on all kinds of trails, from the mild to the wild

Highlights

  • A premium SmartForm C1 Alloy frame - light, stiff, and guaranteed for life
  • Bosch's most powerful system – Performance CX motor and 800Wh battery. Incredibly natural power delivery and huge range
  • RockShox’s workhorse all-mountain suspension – 160mm Psylo Silver RC fork and Deluxe Select air shock
  • Reliable WTB ST i30 rims, 30mm inner width, with Shimano hubs and Continental Kryptotal tires
  • Precise shifting from Shimano’s CUES U6000 LinkGlide 11-speed drivetrain
  • Shimano MT520 4-piston hydraulic disc brakes with 203mm rotors deliver strong, consistent braking power

More Juice, No Excuse


Alloy Done Right
Cannondale’s been bending aluminum into awesomeness for decades. Forged with a SmartForm alloy frame, Moterra 3 and 4 deliver a blend of trail-hungry toughness and lively handling. 150mm rear suspension, 160mm at the front, rolling on sturdy 29ers—it’s snappy in switchbacks, poised on sketchy descents, and alway game for roughin’ it.

Play With Power

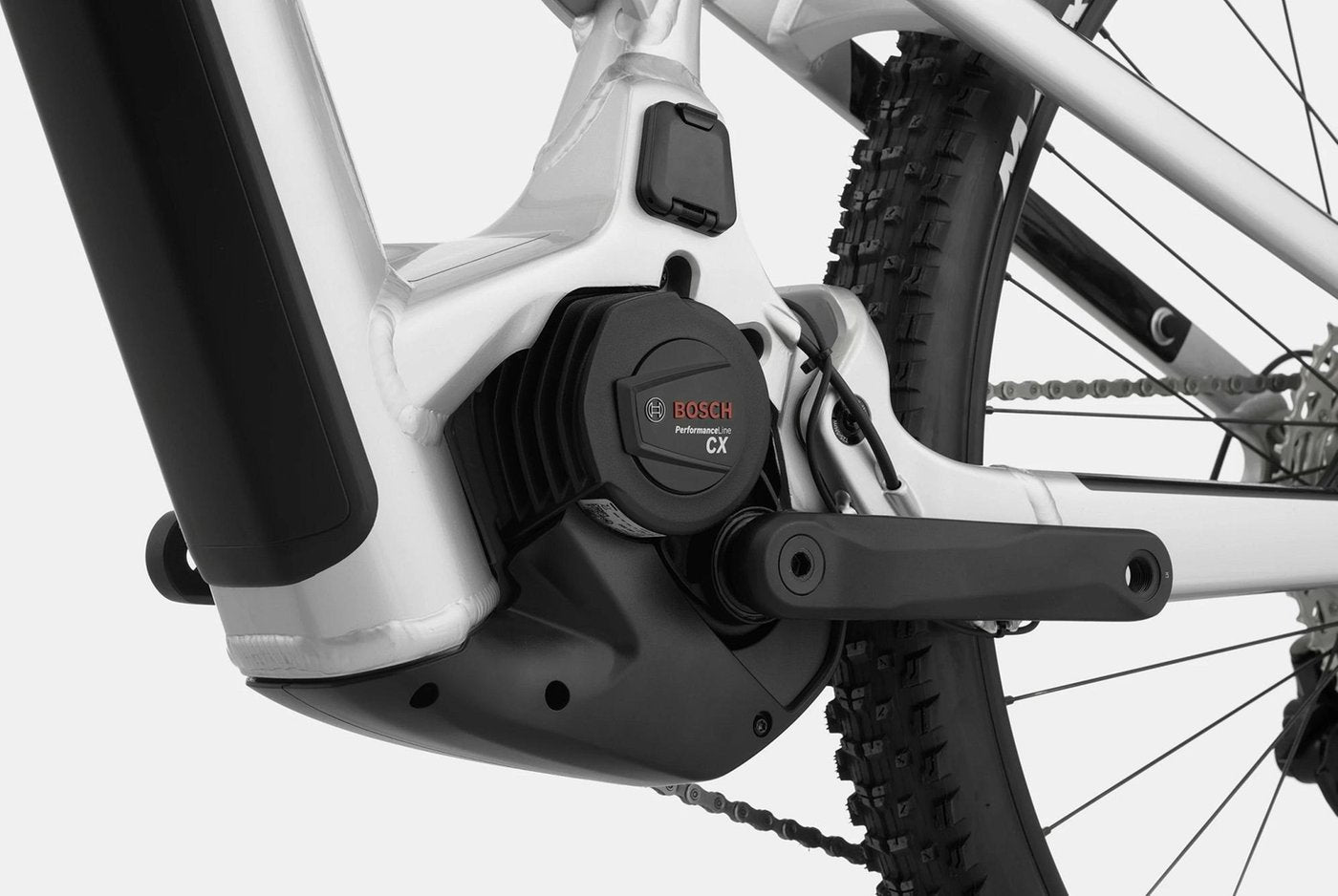

Cranking out up to 100Nm of torque via Bosch’s Performance Line CX, this rig will make you grin on the climbs and laugh on the descents. Fueled by 800Wh or 600Wh PowerTube battery options, you’ve got enough juice to taunt gravity all day. Power delivery so smooth, immediate, and satisfying—you’ll swear it’s reading your intentions before you’ve even touched the pedals.

Features





Description Moterra 3
Color Obsidian
Size LG
Barcode 884603969373
Tagline
Frame Moterra, SmartForm C1 Alloy, 29" wheels, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtube, 40mm two-bolt kickstand compatible, integrated Moterra rear rack and fender mounts
Fork RockShox Psylo Silver RC, 160mm, Motion Control, SoloAir, 15x110mm Maxle, tapered steerer, 44mm offset
Rear Shock RockShox Deluxe Select, DebonAir+, adjustable rebound, 230x62.5mm
Rims WTB ST i30 TCS, 30mm inner width, 32h, tubeless ready
Hubs (F) Shimano TC500, 15x110mm thru-axle / (R) Shimano TC500, 12x148mm thru-axle, centerlock
Spokes DT Swiss Champion 2.0
Tires (F) Continental Kryptotal-F, 29x2.4", Enduro Soft Black Foldable / (R) Continental Kryptotal-R, 29x2.4", Enduro Soft Black Foldable
Pedal Not Included
Crank FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
Bottom Bracket Null
Chain Shimano LG500, LinkGlide, 11-speed
Rear Cogs Shimano CUES LG400, LinkGlide, 11-50, 11-speed
Front Derailleur Null
Rear Derailleur Shimano CUES U6000, LinkGlide
Shifters Shimano CUES U6000, 11-speed, LinkGlide
Handlebar Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm
Grips Cannondale TaperRidge
Stem Cannondale 1, 6061 Alloy, 35.0, 40mm, 0°
Headset Acros ICR, 1.5" to 1.8", sealed bearings
Brakes Shimano MT520 4-piston hydraulic disc, 203mm RT64 rotors
Brake Levers Shimano MT501 hydraulic disc
E-bike Display
E-Bike Battery Bosch PowerTube, 800Wh
E-bike Charger
E-bike Drive Unit
Saddle WTB Silverado Medium
Seatpost Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)
Accessories & Extras Tubeless Valve Stems, pre-installed front light cable, Bosch PowerMore range extender compatible

Brakes
Brake

Shimano MT420 4-piston hydraulic disc, 203/203mm rotors

Brake Lever

Shimano MT401 hydraulic disc

Front Rotor

⌀ 203mm

Rear Rotor

⌀ 203mm

Cockpit
Stem
Cannondale 3, 6061 Alloy, 31.8, 0°
Grips
Fabric FunGuy
Headset
Integrated Sealed Bearing, Tapered
Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
Display
Bosch Kiox 300 w/ LED remote
General
Frame

Moterra Neo, SmartForm C1 Alloy, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, injection molded skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, integrated rear rack mounts

Groupset
Cassette

Shimano Deore M6100, 10-51, 12-speed

Shifters

Shimano Deore M6100, 12-speed

Gearing

Shimano Deore XT

Motor & Battery
Battery

Bosch PowerTube 750Wh

Charger

Bosch 4A

Battery Capacity

750 Wh

Motor Manufacturer

Bosch

Battery Manufacturer

Bosch

Maximum Motor Support

up to 25 kph

Wheels & Tires
Tires

(F) Maxxis Minion DHF, 29 x 2.6", EXO, tubeless ready / (R) Maxxis Rekon, 29 x 2.6" (27.5x2.6" - size Small), EXO, tubeless ready

Wheels

WTB ST i30 TCS, 32h, tubeless ready

Front Tire

Maxxis Minion DHF, 29 x 2.6", EXO, tubeless ready

Rear Tire

Maxxis Rekon, 29 x 2.6" (27.5x2.6" - size Small), EXO, tubeless ready

Tire

(F) Maxxis Minion DHF, 29 x 2.6", EXO, tubeless ready / (R) Maxxis Rekon, 29 x 2.6" (27.5x2.6" - size Small), EXO, tubeless ready

Tire Size

29.0

Disclaimer

Depending on the situation, differences or deviations between specified and installed components are possible. Alternatively, installed components correspond to the quality level of the selected components. Errors and omissions are excepted.
