Cannondale

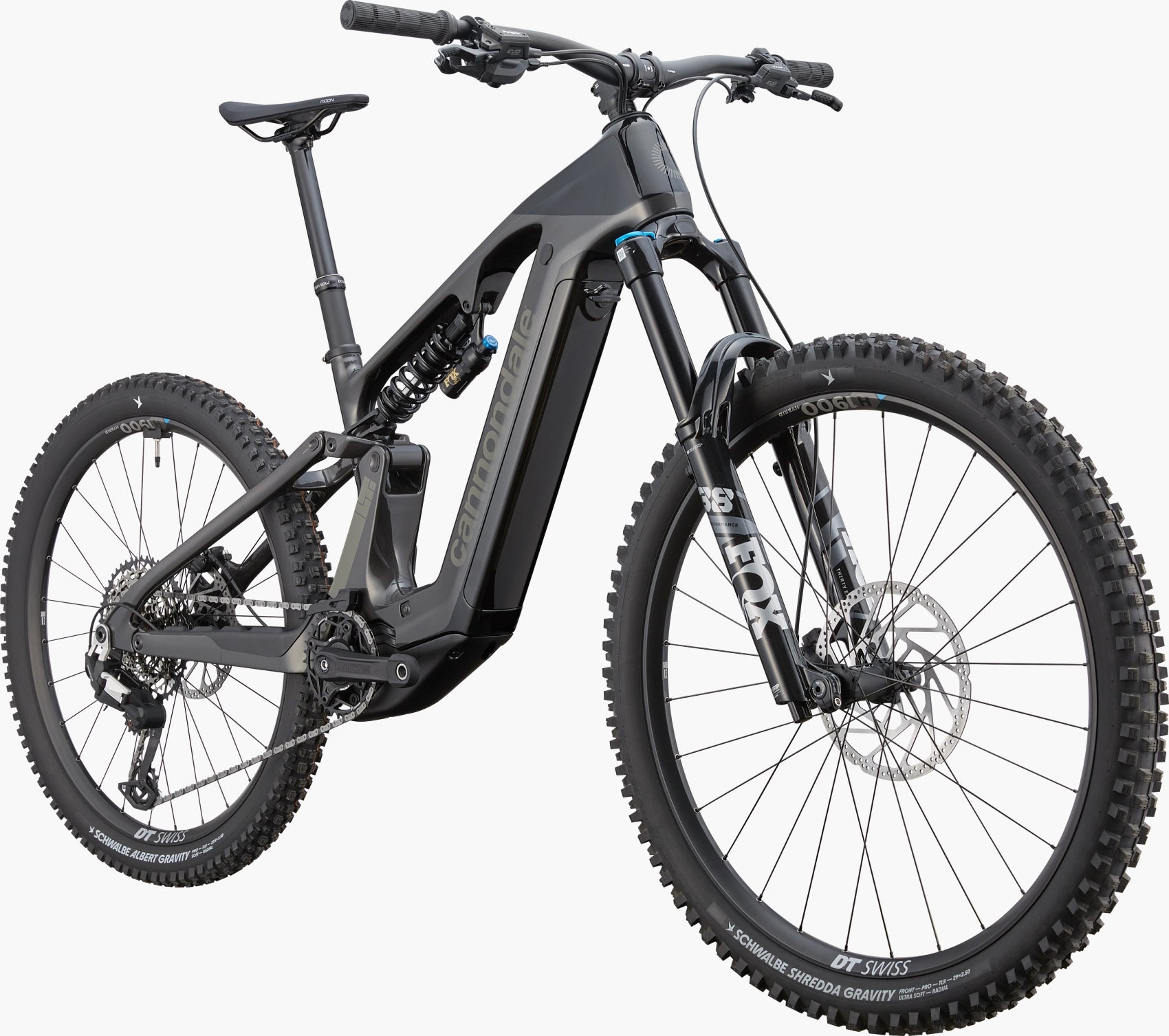

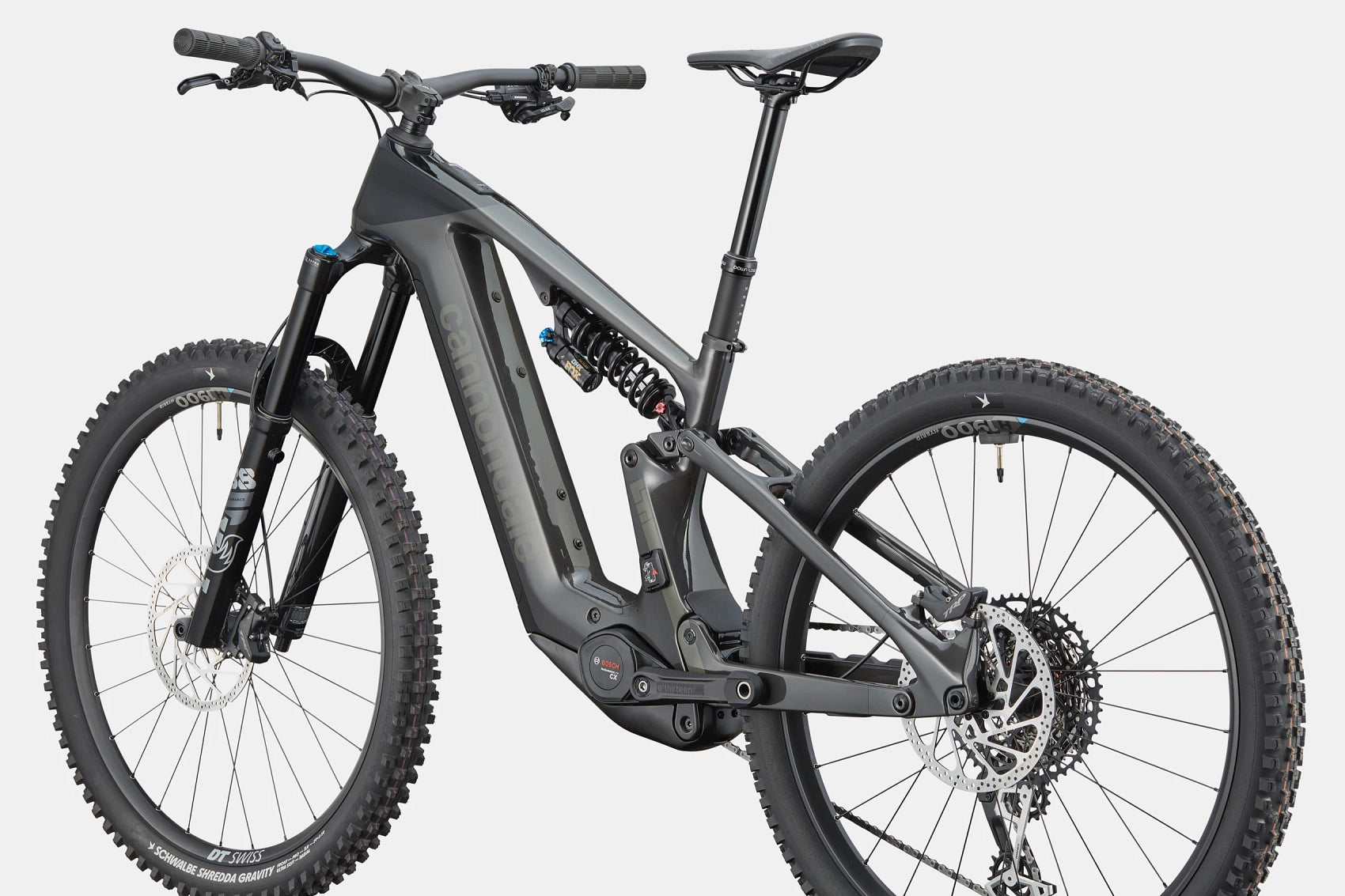

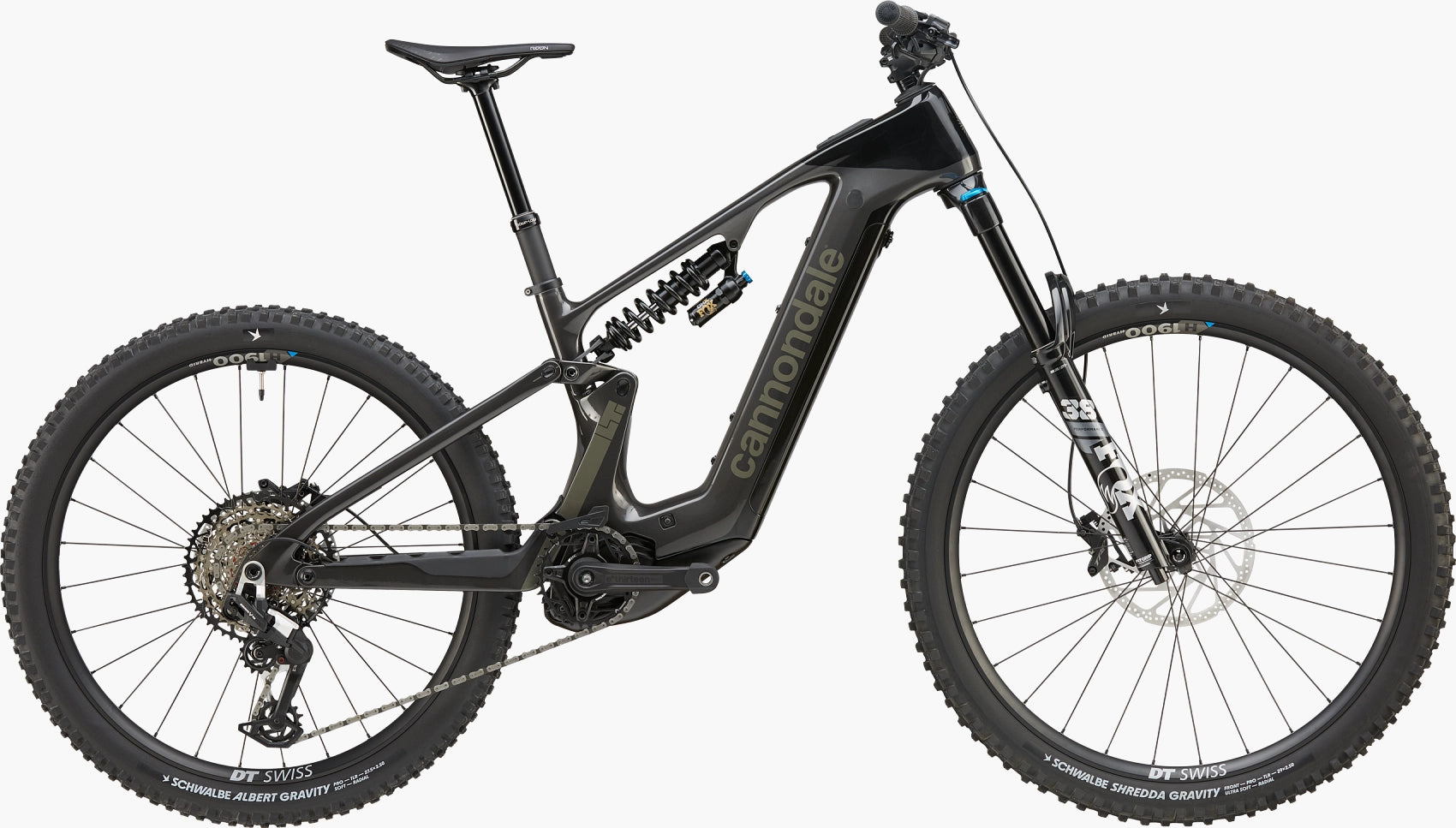

Cannondale Moterra LT 1

Cannondale Moterra LT 1

$10,599.00
$10,599.00 $11,999.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Colors BLACK/Charcoal
Size

Shipping & Pickup Options

  • Shipping: We ship Australia-wide. Shipping charges will be shown at checkout after you enter your address.
  • Pickup: Available at our store: 271 Smith St. Fitzroy VIC
View full details

Point and Play

The reigning E-Enduro World Champ, Moterra LT transforms every trail into a never-ending playground. Power up climbs, flatten bumps, and tear through descents like a mosh pit in motion.

Model Description

The Moterra LT is where agility meets audacity. With a new full carbon frame, 170mm of front and 165mm of rear travel, and a mullet wheel setup, this bike lunges up brutal climbs and down nasty descents with unshakable confidence. The Bosch CX motor and 800Wh battery deliver lasting power, while the Fox 38 Performance fork and DHX coil shock provide a plush, controlled ride. SRAM Eagle 90/70 shifting and TRP EVO Pro brakes ensure you stay in control, no matter how wild things get.

What it's for

Getting after it on the wilder side. Steep climbs, fast descents, big hits, and endless laps

Highlights

  • A light yet burly carbon fiber frame - Proportional Response size-specific kinematics, tuned for specifically for the coil shock and mullet wheels
  • Bosch's most powerful system – Performance CX motor and 800Wh battery. Incredibly natural power delivery and huge range
  • Hard-hitting Fox Suspension – 170mm Float Performance 38 fork and supple DHX Performance coil piggyback shock
  • Rugged DT Swiss H 1900 Spline EMTB Wheelset – Built to survive - 30mm inner width, 370 hubs with durable Ratchet LN internals
  • Tough, reliable SRAM Eagle 90/70 12-speed shifting
  • Powerful braking from TRP EVO Pro 4-piston stoppers with 220/203mm rotors

Platform
Moterra Neo LT
Model Name
Moterra LT 1
Model Code
C65134U
Frameset
Frame
Moterra LT Carbon, 27.5" rear wheel, 29" front wheel, 165mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtube
Fork
Fox Float Performance 38, 170mm, Grip Damper 3Pos, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset
Headset
Acros ICR, 1.5" to 1.8", sealed bearings
Rear Shock
Fox DHX Performance, Coil, 2 pos adj, 230x65mm
E-System
Drive Unit

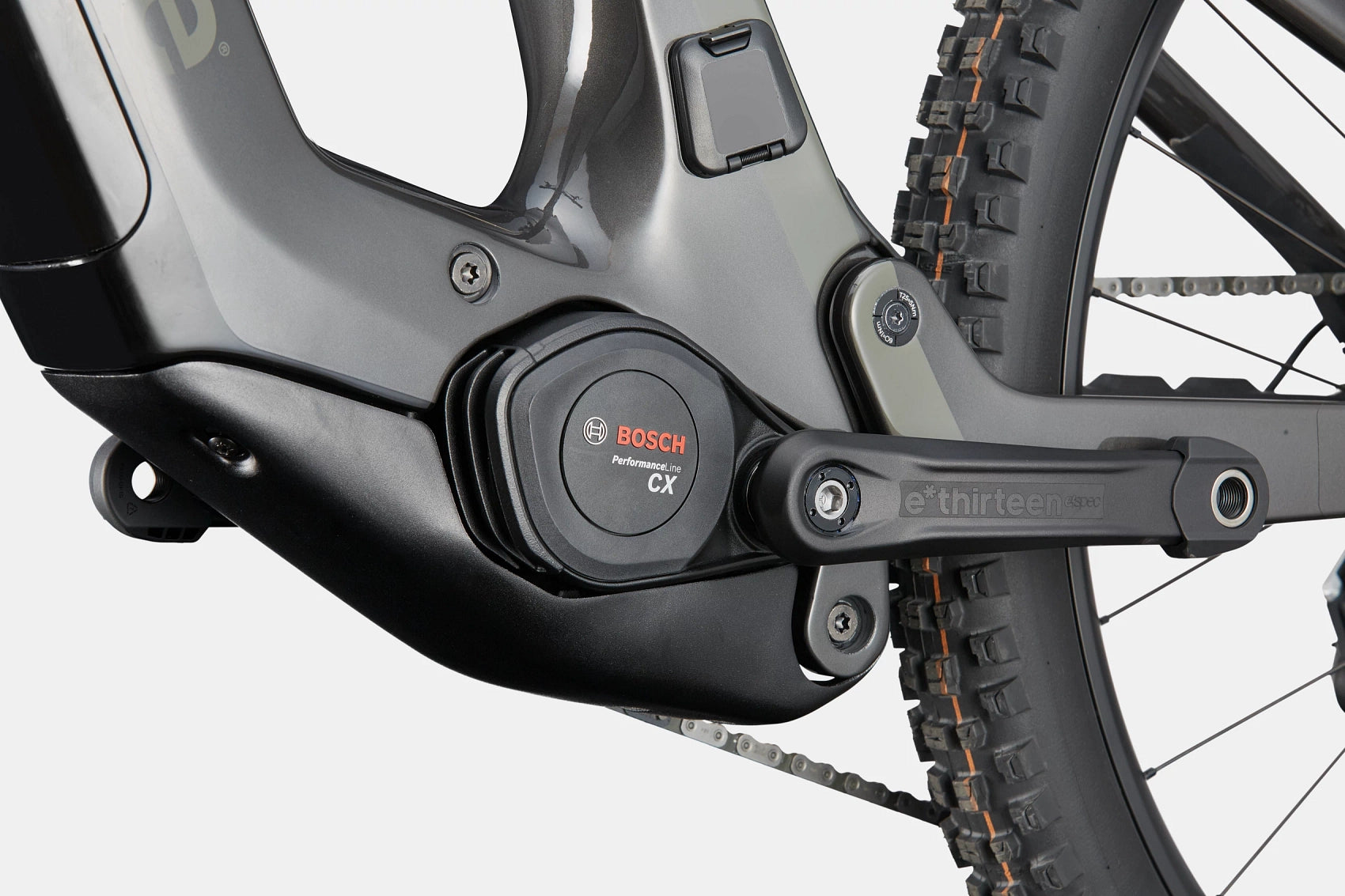

Bosch Performance Line CX
Battery
Bosch PowerTube, 800Wh
Charger
Bosch 4A
Display

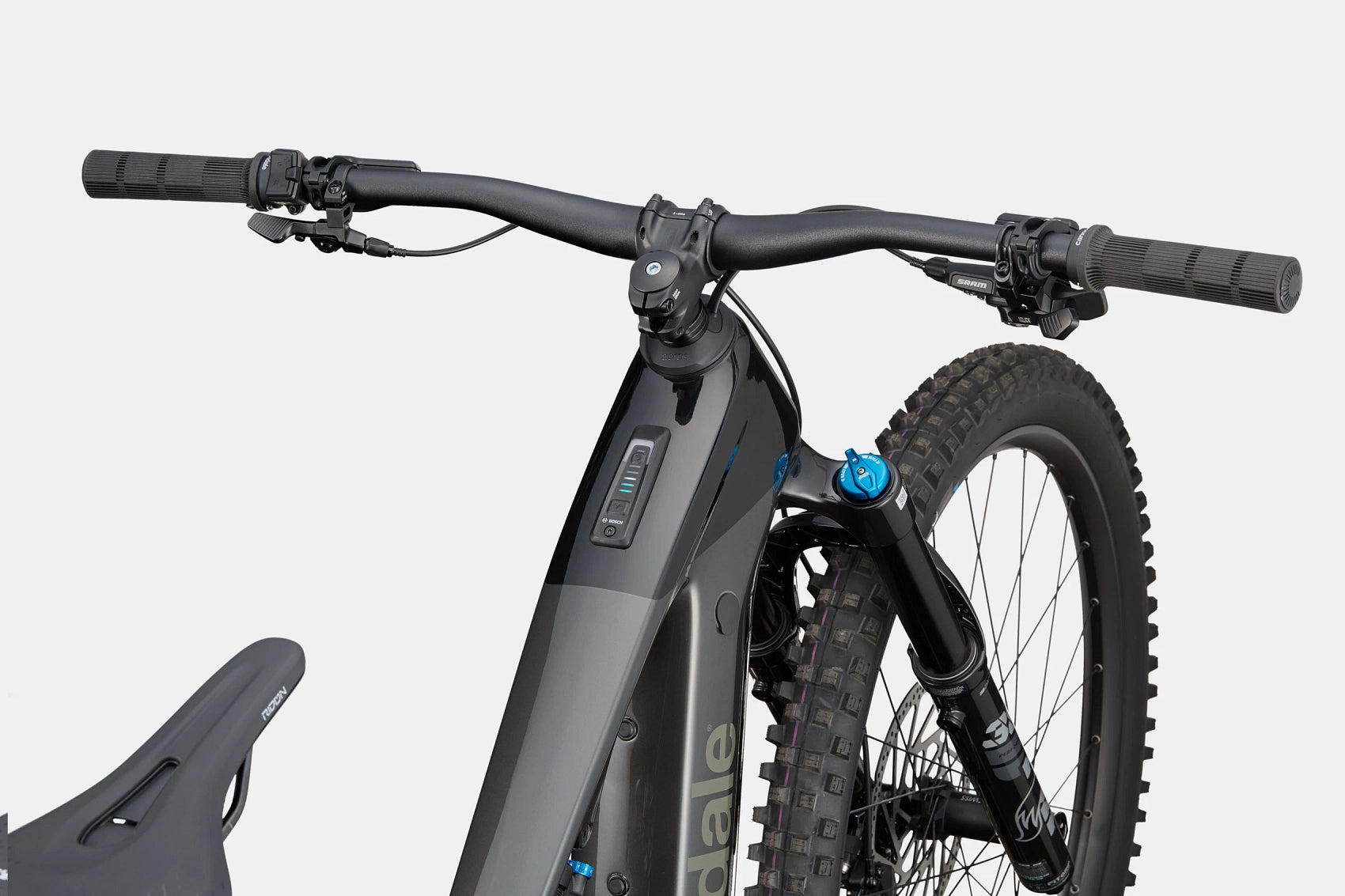

Top Tube System Controller w/ Mini Remote
Drivetrain
Rear Derailleur

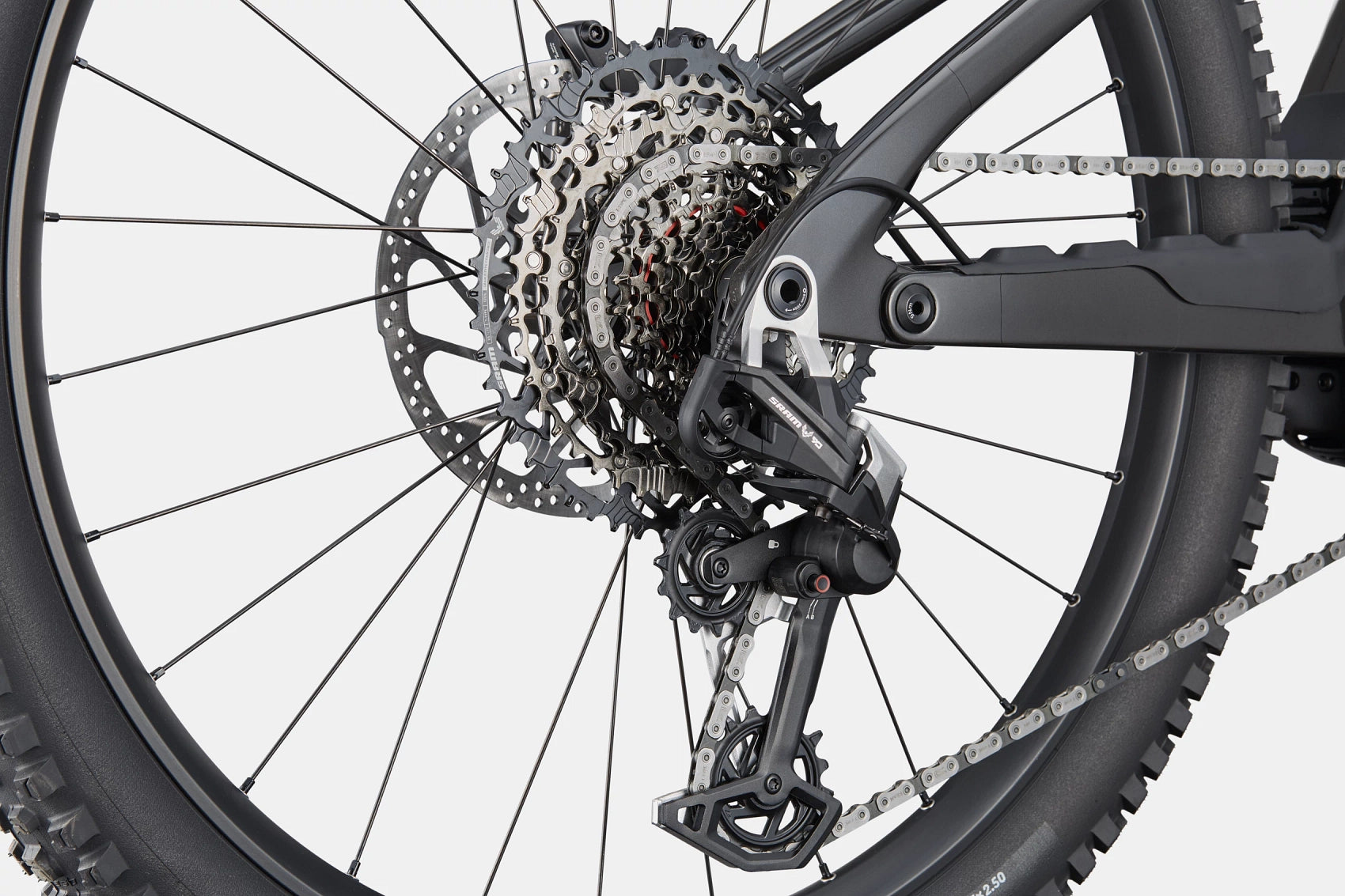

SRAM Eagle 90, T-Type
Shifters
SRAM Eagle 90, T-Type, 12-speed
Chain
SRAM Eagle 70 T-Type, 12-speed
Crank
e*thirteen e*spec Helix Core, 55mm chainline, 160mm, 34T
Rear Cogs
SRAM Eagle 70 T-Type, 10-52, 12-speed
Brakes
Brakes
TRP EVO Pro 4-piston hydraulic disc, 220/203mm rotors, 2.3mm thickness
Brake Levers
TRP EVO Pro hydraulic disc
Wheels
Rims
DT Swiss H 1900 Spline, 30mm inner width, TC (tubeless ready)
Spokes
DT Swiss Competition, straight pull
Tire Size
2.5
Wheel Size
297
Hubs
(F) DT Swiss 370, 15x110mm thru-axle / (R) DT Swiss 370 LN Ratchet System, 12x148mm thru-axle, 6-bolt
Tires
(F) Schwalbe Shredda Front, 29x2.5", Radial casing, Addix Ultra Soft Foldable, tubeless ready / (R) Schwalbe Albert, 27.5x2.5", Radial casing, Addix Soft Foldable, tubeless ready
Front Tire
Schwalbe Shredda Front, 29x2.5", Radial casing, Addix Ultra Soft Foldable , tubeless ready
Rear Tire
Schwalbe Albert, 27.5x2.5", Radial casing, Addix Soft Foldable, tubeless ready
Components
Handlebar
Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm
Stem
Cannondale 1, 6061 Alloy, 35.0, 40mm, 0°
Grips
Cannondale TaperRidge
Saddle
Fizik Terra Ridon X5, 145mm, Wingflex, S-Alloy Mobius rail
Seatpost
Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)
Extra
Extra 1
Tubeless Valves, Bosch PowerMore range extender compatible

Brakes
Brake

Shimano MT420 4-piston hydraulic disc, 203/203mm rotors

Brake Lever

Shimano MT401 hydraulic disc

Front Rotor

⌀ 203mm

Rear Rotor

⌀ 203mm

Cockpit
Stem
Cannondale 3, 6061 Alloy, 31.8, 0°
Grips
Fabric FunGuy
Headset
Integrated Sealed Bearing, Tapered
Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
Display
Bosch Kiox 300 w/ LED remote
General
Frame

Moterra Neo, SmartForm C1 Alloy, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, injection molded skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, integrated rear rack mounts

Groupset
Cassette

Shimano Deore M6100, 10-51, 12-speed

Shifters

Shimano Deore M6100, 12-speed

Gearing

Shimano Deore XT

Motor & Battery
Battery

Bosch PowerTube 750Wh

Charger

Bosch 4A

Battery Capacity

750 Wh

Motor Manufacturer

Bosch

Battery Manufacturer

Bosch

Maximum Motor Support

up to 25 kph

Wheels & Tires
Tires

(F) Maxxis Minion DHF, 29 x 2.6", EXO, tubeless ready / (R) Maxxis Rekon, 29 x 2.6" (27.5x2.6" - size Small), EXO, tubeless ready

Wheels

WTB ST i30 TCS, 32h, tubeless ready

Front Tire

Maxxis Minion DHF, 29 x 2.6", EXO, tubeless ready

Rear Tire

Maxxis Rekon, 29 x 2.6" (27.5x2.6" - size Small), EXO, tubeless ready

Tire

(F) Maxxis Minion DHF, 29 x 2.6", EXO, tubeless ready / (R) Maxxis Rekon, 29 x 2.6" (27.5x2.6" - size Small), EXO, tubeless ready

Tire Size

29.0

Disclaimer

Depending on the situation, differences or deviations between specified and installed components are possible. Alternatively, installed components correspond to the quality level of the selected components. Errors and omissions are excepted.
