Cannondale

Cannondale Moterra Crb 2

Cannondale Moterra Crb 2

$8,999.00
$8,999.00 $9,999.00
Sale Sold out
Taxes included.
Colors Gray
Size
View full details

More Juice, No Excuse

The Moterra packs massive power, range, and silky suspension, handling rugged terrain like a luxury off-roader. Built to go further—faster.

Model Description

A masterclass in capability. The Moterra 2 features a new, lightweight, full carbon frame with 150mm travel and a hard-charging 160mm RockShox Zeb Select fork for pinpoint handling. A blended Shimano XT/CUES U8000 drivetrain and Magura MT5 brakes combine with Bosch’s most powerful CX motor and 800Wh battery to extend every ride beyond expectation. Agile, composed, and ever-ready to push the limits of exploration.

What it's for

Endless spins, uphill wins, and permanent grins on all kinds of trails, from the mild to the wild

Highlights

  • A lightweight carbon fiber frame - Proportional Response size-specific suspension, tuned for specifically for the air shock and 29” wheels
  • Bosch's most powerful system – Performance CX motor and 800Wh battery. Incredibly natural power delivery and huge range
  • Smooth and rugged RockShox suspension – 160mm ZEB Select 38 fork and Deluxe Select+ air shock
  • Light and durable WTB ST i30 Tough rims, 30mm inner width, with Shimano hubs and Continental Kryptotal tires
  • Flawless shifting from Shimano’s high-end XT / CUES U8000 LinkGlide blended drivetrain
  • Powerful, controllable stopping from Magura’s MT5 4-piston stoppers with 203mm rotors

More Juice, No Excuse


Rider-first Refinement.
For mountain bikers who want it all—power, precision, and performance—the Moterra’s full-carbon frame delivers. With 150mm of rear travel, 160mm up front and 29” wheels, it stays sharp on descents, solid on climbs, and agile in the tight stuff. Less weight, and handling so dialed you’ll forget it’s packing extra juice.

Power. Pedal. Repeat.

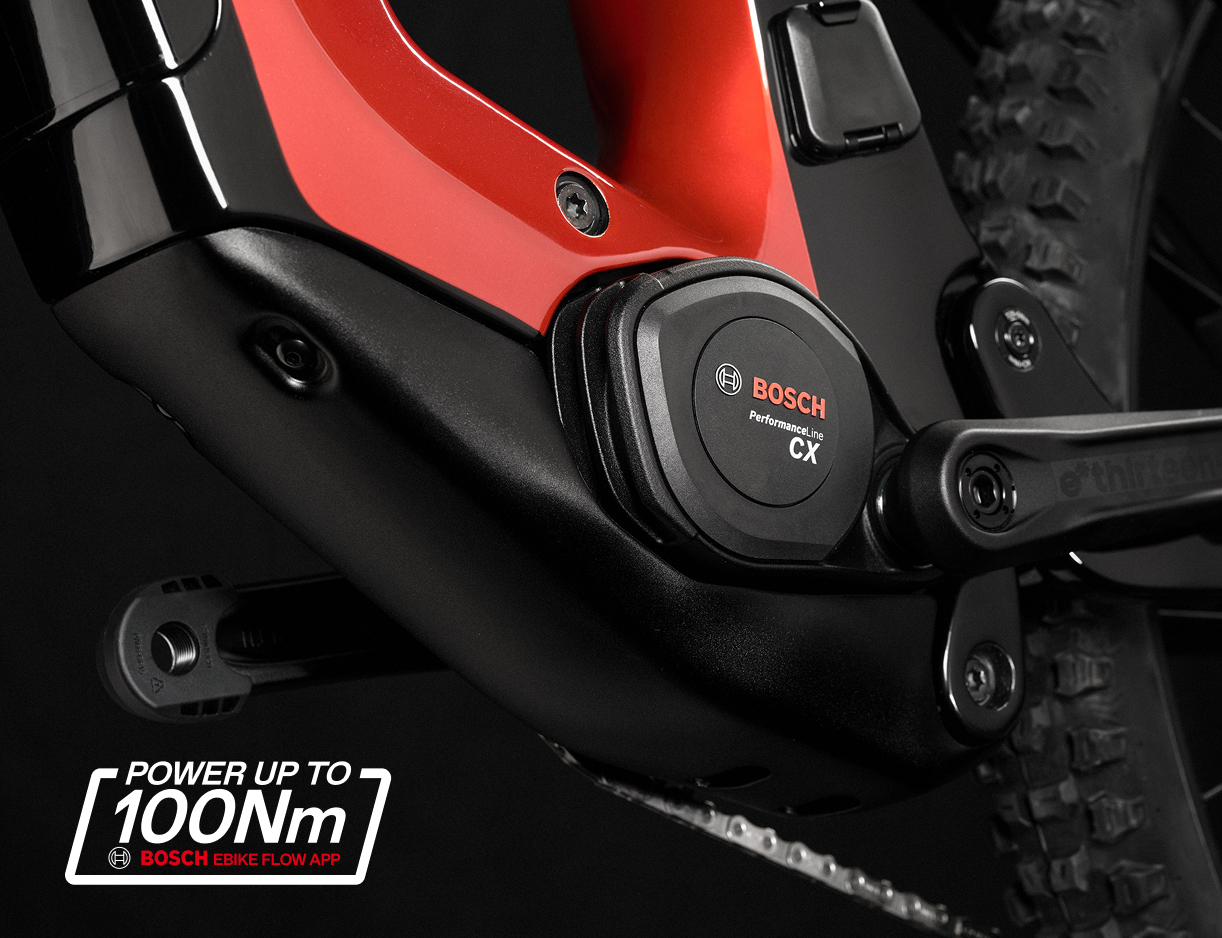

With up to 100Nm of torque and an 800Wh battery, the Bosch Performance Line CX system delivers the perfect blend of strength and stamina. Instant power on the climbs, effortless speed on the flats, and efficiency that keeps you rolling from sunrise to sunset. No lag, no restraint—just pure, pedal-assisted exhilaration.

Built to Fit, Born To Rip
No cookie-cutter sizing here. The Moterra’s Proportional Response™ design means every frame gets custom geometry, balancing weight, traction, and control. From the first pedal stroke to last light, it’s tuned to move with you—stable, agile, and effortlessly smooth.


Details

  • PlatformMoterra Neo
  • Model NameMoterra 2
  • Model CodeC65024U

Frameset

  • FrameMoterra Carbon, 29" wheels, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtube, 40mm two-bolt kickstand compatible
  • ForkRockShox ZEB Select, 160mm, Charger RC, DebonAir+, 15x110mm Maxle, 44mm offset
  • HeadsetAcros ICR, 1.5" to 1.8", sealed bearings
  • Rear ShockRockShox Deluxe Select+, DebonAir+, 2-Pos mode adjust, adjustable rebound, 230x62.5mm

E-System

  • Drive UnitBosch Performance Line CX
  • BatteryBosch PowerTube, 800Wh
  • ChargerBosch 4A
  • DisplayTop Tube System Controller w/ Bosch Kiox 300 & Mini Remote

Drivetrain

  • Rear DerailleurShimano XT M8130, LinkGlide
  • ShiftersShimano CUES U8000, 11-speed, LinkGlide
  • ChainShimano LG500, LinkGlide, 11-speed
  • CrankFSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
  • Rear CogsShimano CUES LG700, LinkGlide, 11-50, 11-speed

Brakes

  • BrakesMagura MT5 4-piston hydraulic disc, 203mm Storm rotors
  • Brake LeversMagura MT5 hydraulic disc

Wheels

  • RimsWTB ST i30 Tough TCS, 30mm inner width, 32h, tubeless compatible
  • SpokesDT Swiss Champion 2.0
  • Tire Size2.4
  • Wheel Size29
  • Hubs(F) Shimano TC500, 15x110mm thru-axle / (R) Shimano TC500, 12x148mm thru-axle, centerlock
  • Tires(F) Continental Kryptotal-F, 29x2.4", Enduro Soft Black Foldable / (R) Continental Kryptotal-R, 29x2.4", Enduro Soft Black Foldable
  • Front TireContinental Kryptotal-F, 29x2.4", Enduro Soft Black Foldable
  • Rear TireContinental Kryptotal-R, 29x2.4", Enduro Soft Black Foldable

Components

  • HandlebarCannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm
  • StemCannondale Trail HeadsUp w/ integrated display mount, 3D Forged 6061 Alloy, 1-1/8", 45mm, 0°
  • GripsCannondale TaperRidge
  • SaddleFizik Terra Aidon X5, 145mm, Wingflex, S-Alloy Mobius rail
  • SeatpostCannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)

Extra

  • Extra 1Bosch PowerMore range extender compatible
Brakes
Brake

Shimano MT420 4-piston hydraulic disc, 203/203mm rotors

Brake Lever

Shimano MT401 hydraulic disc

Front Rotor

⌀ 203mm

Rear Rotor

⌀ 203mm

Cockpit
Stem
Cannondale 3, 6061 Alloy, 31.8, 0°
Grips
Fabric FunGuy
Headset
Integrated Sealed Bearing, Tapered
Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
Display
Bosch Kiox 300 w/ LED remote
General
Frame

Moterra Neo, SmartForm C1 Alloy, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, injection molded skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, integrated rear rack mounts

Groupset
Cassette

Shimano Deore M6100, 10-51, 12-speed

Shifters

Shimano Deore M6100, 12-speed

Gearing

Shimano Deore XT

Motor & Battery
Battery

Bosch PowerTube 750Wh

Charger

Bosch 4A

Battery Capacity

750 Wh

Motor Manufacturer

Bosch

Battery Manufacturer

Bosch

Maximum Motor Support

up to 25 kph

Wheels & Tires
Tires

(F) Maxxis Minion DHF, 29 x 2.6", EXO, tubeless ready / (R) Maxxis Rekon, 29 x 2.6" (27.5x2.6" - size Small), EXO, tubeless ready

Wheels

WTB ST i30 TCS, 32h, tubeless ready

Front Tire

Maxxis Minion DHF, 29 x 2.6", EXO, tubeless ready

Rear Tire

Maxxis Rekon, 29 x 2.6" (27.5x2.6" - size Small), EXO, tubeless ready

Tire

(F) Maxxis Minion DHF, 29 x 2.6", EXO, tubeless ready / (R) Maxxis Rekon, 29 x 2.6" (27.5x2.6" - size Small), EXO, tubeless ready

Tire Size

29.0

Disclaimer

Depending on the situation, differences or deviations between specified and installed components are possible. Alternatively, installed components correspond to the quality level of the selected components. Errors and omissions are excepted.
