MERIDA

Big Trail 300

Big Trail 300

$1,298.00
$1,298.00
Sale Sold out
Taxes included.
Colors Silver
Size
View full details

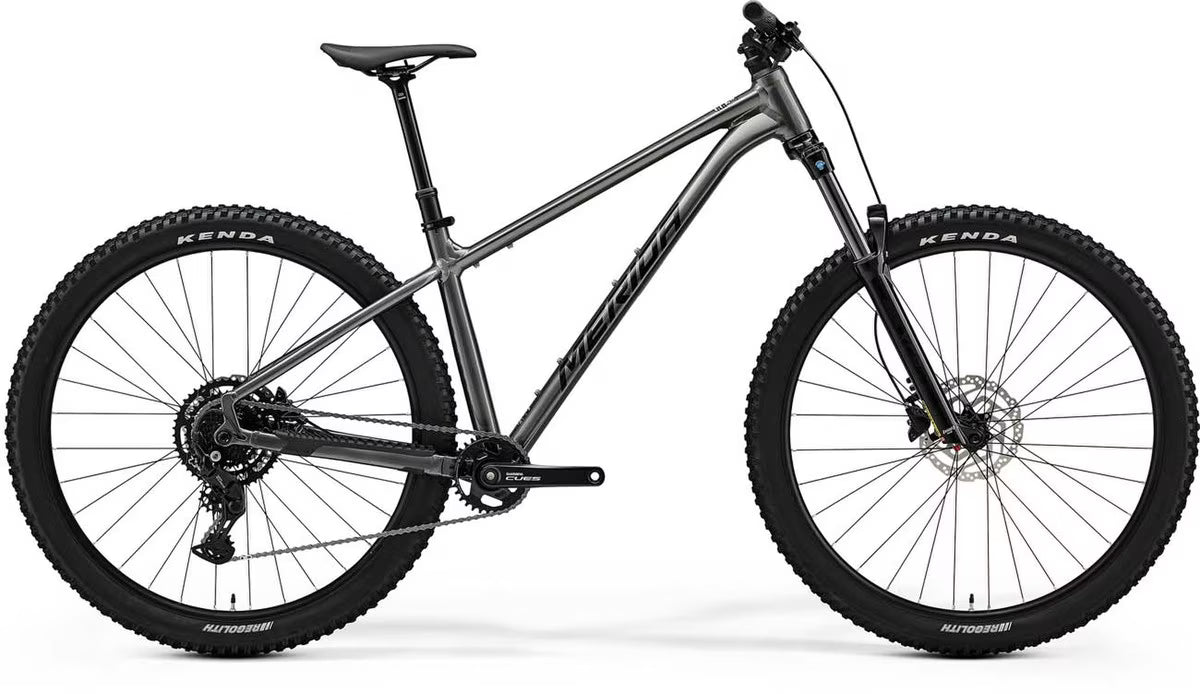

The Merida Big.Trail 300 Hardtail Trail Bike is designed for tackling trails and off-road adventures. It features a 140mm travel SR Suntour XCR34 fork and 29-inch Kenda Regolith tires for handling bumps. The Shimano CUES 1x9 drivetrain ensures efficient power transfer, while Shimano hydraulic disc brakes provide reliable stopping power in all conditions. Additionally, the Merida Comp dropper post aids in navigating technical descents.








SEASON 2025
BOTTOM BRACKET FSA BB-7420ST 127.5mm
CHAIN KMC xGlide
CHAINWHEEL Shimano CUES U4000; 32 ATC
CRANKSET 170 mm for all sizes
DERAILLEUR REAR Shimano CUES U4000;
FORK SR Suntour XCR34; Air; 140 STR; platform
FRAME BIGTRAIL TFS II MAT aluminium 29x25 max WHS 148x12 AST BSA BBR
FREEWHEEL Shimano LG300; 11-46 ATC; 9 GER
GRIP MERIDA COMP EC
HANDLEBAR MERIDA COMP TR; MAT aluminium; 780 WHB; 20 RHB
HANDLEBAR STEM MERIDA COMP TR; MAT aluminium; 35 DSH; +7' ASD
RIM MERIDA COMP CC II; 25 IWR; MAT aluminium; tubeless ready
ROTOR FRONT Shimano RT10; 180mm
ROTOR REAR Shimano RT10; 180mm
SADDLE MERIDA COMP SL; 25% recycled material; V-mount
SEAT CLAMP MERIDA EXPERT
SEAT POST MERIDA COMP TR II; 34.9 DSP; 0 SSB; XS: 150 SPT，S: 170 SPT，M/L: 200 SPT，XL: 230 SPT
TYRE FRONT Kenda Regolith; 29x2.4"; wire
TYRE REAR Kenda Regolith; 29x2.4"; wire
FEATURES
Lightweight alloy frame
140mm travel SR Suntour XCR34 fork
Shimano CUES 1x9 gears
Shimano hydraulic disc brakes
Merida Comp TR II dropper post
Kenda Regolith tyres

Disclaimer

Depending on the situation, differences or deviations between specified and installed components are possible. Alternatively, installed components correspond to the quality level of the selected components. Errors and omissions are excepted.
