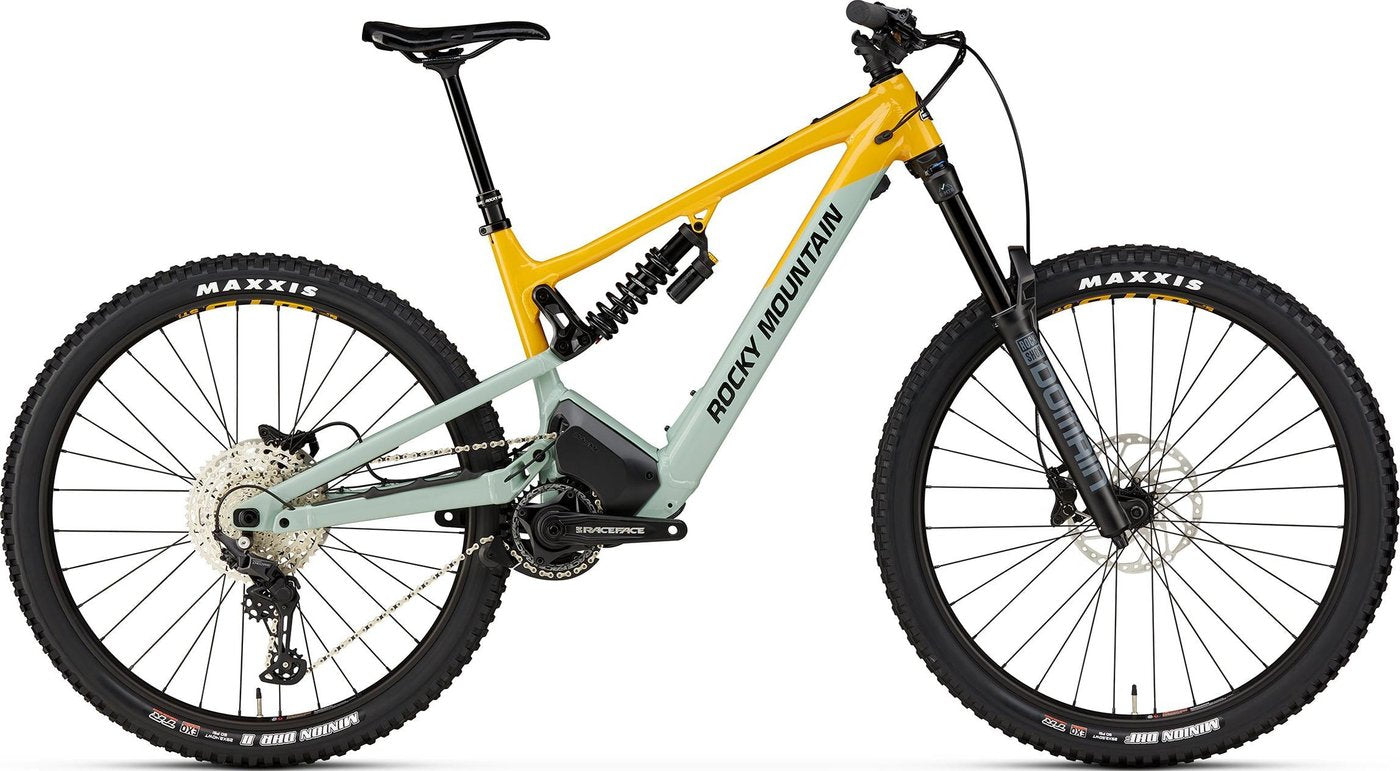

Introducing the Rocky Mountain Altitude Powerplay Alloy 30 Coil 2023, a top-notch electric mountain bike that combines power, precision, and versatility, making it the perfect choice for both seasoned riders and those eager to explore the thrilling trails. With its robust FORM™ Alloy frame, you get the durability and stability needed to tackle rugged terrains, while the integrated display maintains a sleek look and keeps you informed during your ride.
The bike features the advanced Mid-High Pivot Smoothlink Suspension System, offering a plush 160mm travel. This means you can push your limits on downhill runs or navigate tricky obstacles without losing momentum. You can also fine-tune the ride experience thanks to the RIDE-4™ adjustable geometry and suspension rate, allowing you to adapt to different trail conditions effortlessly.
For performance, the Rocky Mountain Altitude Powerplay is equipped with a Shimano Deore groupset, providing reliable and smooth gear shifting for all your climbs and descents. The Shimano MT4120 4 Piston brakes, combined with 203mm rotors on both front and rear, ensure precise stopping power, even in demanding weather conditions. Together, these components guarantee that you remain in control, whether you’re navigating technical sections or cruising down faster trails.
The 170mm RockShox Domain RC fork enhances the ride quality even more, while the Marzocchi Bomber CR shock ensures efficient suspension performance with minimal maintenance. Both of these parts work in harmony to absorb bumps and provide you with a comfortable ride through whatever path you set your wheels on.
Powering this eMTB is the Dyname 4.0 Mountain Bike Drive, boasting a 250w nominal power and 108Nm torque. This low RPM, high-efficiency motor is designed for serious off-road enthusiasts who value performance, particularly on challenging climbs. With the Rocky Mountain Micro Remote at your fingertips, selecting the ideal assist level is seamless, allowing you to manage your energy for longer rides.
With a 720 Wh removable Integrated Li-Ion battery, you can recharge your bike quickly—achieving a 100% charge in as little as 3 hours and 55 minutes with a 4A charger. This guarantees that you'll spend more time on your bike and less time tethered to an outlet. The Rocky Mountain Jumbotron display gives you all the critical information you need at a glance, including trip statistics and battery levels, enhancing clarity and control as you ride.
This electric mountain bike is ideal for adventurous riders who aren’t afraid to tackle new challenges. It encourages exploration and pushes you to ride further and harder. Many riders have praised its ability to conquer steep hills with ease and navigate through technical terrains while remaining comfortable during long rides.
In summary, the Rocky Mountain Altitude Powerplay Alloy 30 Coil 2023 is a fantastic choice for both novice and experienced cyclists who seek to expand their boundaries without compromising on performance or comfort. With its well-thought-out components and powerful e-motor, you’re guaranteed to elevate your mountain biking experience with this versatile bike.
Brake
Shimano MT4120 4 Piston | Metal Pads | F:Shimano RT64 203mm | R:Shimano RT64 203mm
Stem
Rocky Mountain 31.8 AM | 5° Rise | All Sizes = 40mGrips
Rocky Mountain Lock On LightHeadset
FSA Orbit NO.57E | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown RaceHandlebar
Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 ClampDisplay
Rocky Mountain Jumbotron | Drive System Customization | Battery & Assist Level | Trip | Speed | Cadence | Top Tube IntegrationRemote
Rocky Mountain Micro RemoteFrame
FORM™ Alloy | Integrated Display | Mid-High Pivot Smoothlink Suspension System | Press Fit BB | RIDE-4™ Adjustable Geometry + Suspension Rate | 160mm Travel. FORM™ Alloy Rear Triangle
Chain / Belt
KMC X11-1
Cassette
Shimano Deore 11-51T 11spd
Shifters
Shimano Deore 11spd
Bottom Bracket
Shimano SM-BBMT500
Rear Derailleur
Shimano Deore 11spd
Gearing
Shimano Deore
Torque
108 Nm
Battery
720 Wh Removable Integrated Li-Ion | 100% Charged in 3:55 (4A) / 7:35 (2A) | 80% Charged in 2:55 (4A) / 6:05 (2A)
Charger
Rocky Mountain Powerplay Charger | 2A | 48V | Higo Deep Socket Connector | Overtimepack Compatible (Dyname 4)
Battery Capacity
720 Wh
Maximum Motor Support
up to 25 kph
Tires
F: Maxxis Minion DHF 2.5 WT EXO Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT EXO Tubeless Ready
Spokes
2.0 Stainless
Wheel Size
29
Wheels
WTB ST i30 TCS 2.0 Tubeless | 32H | Tubeless Ready - Tape / Valves Incl
Front Hub
Rocky Mountain Sealed Boost 15mm
Rear Hub
Novatec D462 Sealed Boost 148mm
Tire
F: Maxxis Minion DHF 2.5 WT EXO Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT EXO Tubeless Ready
Saddle
WTB Volt 142
Seat Post
Rocky Mountain Toonie Drop Composite 30.9mm | SM = 125mm | MD = 150mm | LG - XL = 170mm
Fork
RockShox Domain RC 170mm | 44mm Offset
Shock
Marzocchi Bomber CR | Sealed Bearing Eyelet | 25x8mm F Hardware | All Sizes = 230x62.5mm | Size-Specific tune in FAQ
Front suspension
170mm
Fork type
suspension fork
Fork Manufacturer
RockShox
Disclaimer
Depending on the situation, differences or deviations between specified and installed components are possible. Alternatively, installed components correspond to the quality level of the selected components. Errors and omissions are excepted.
