Rocky Mountain

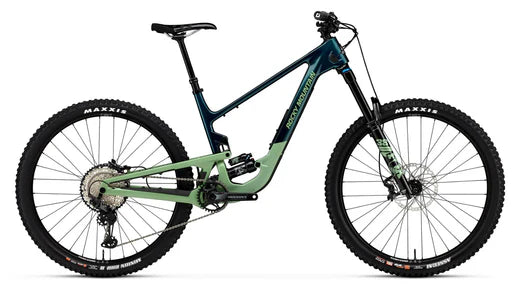

Altitude Carbon C50 2024

Altitude Carbon C50 2024

$7,987.00
$7,987.00 $10,899.00
Sale Sold out
Taxes included.
Colors Green
Size
View full details
Fox 38 Float EVOL GRIP Performance, Fox Float X Performance, Shimano XT Trail 4 Piston


LC2R™ suspension system

LC2R™ (Low Centre Counter Rotating) is our unique take on a virtual pivot suspension design, delivering a smooth and predictable ride on challenging terrain.

RIDE-4™ adjustment system

The RIDE-4 adjustment system allows riders to quickly fine-tune their geometry with a single Allen key. Four configurations are possible thanks to one rotating chip.

Reach adjust headsets

Fine tune your ride with center, +/- 5mm offset options.

PenaltyBox™ 2.0

The new PenaltyBox™ 2.0 downtube storage (carbon models only) includes generous capacity, custom tool wrap and our rock-solid hinged door system that doubles down as a water bottle mount and built-in concealed AirTag/Tile compartment.

29” / MX

Ability to mullet MD-XL via built-in flip chip. No need to buy a separate link or mount.

Size Specific Tune

Size Specific Tune ensures that riders of all sizes get the right balance of small-bump compliance, mid-stroke support, and end-stroke progressiveness. Our design team does custom shock tunes based on real-world field testing and adjusts each tune for specific frame sizes. The new Altitude also has size-specific chainstay lengths to offer a balanced ride across all frame sizes.

SMOOTHWALL™ Carbon

Smoothwall carbon uses one of the world’s most sophisticated carbon processes to deliver industry leading stiffness-to-weight, ride quality, and durability.

  • FrameSMOOTHWALL™ Carbon | Penalty Box 2.0 Storage |Full Sealed Cartridge Bearings | Threaded BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry | 160mm Travel | SMOOTHWALL™ Carbon Rear Triangle
  • ForkFox 38 Float EVOL GRIP Performance Series 170mm | 27.5 = 37mm Offset | 29 = 44mm Offset
  • Front Travel170
  • ShockFox Float X Performance | Sealed Bearing Eyelet | 40x10mm F Hardware | SM = 210x55mm | MD - LG - XL = 230x60mm | Size-Specific tune in FAQ
  • Rear Travel160
  • HeadsetFSA Orbit NO.85 Reach Adjust | 0mm Cups Installed | +/- 5mm Cups Included | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 6.5mm Upper | 40mm x 51.8mm x 8.0mm Lower | 1.5" Crown Race
  • StemRocky Mountain 35 AM | 0° Rise | All Sizes = 40mm
  • HandlebarRocky Mountain AM | 780mm Width | 38mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp
  • GripsODI Elite Pro Lock On
  • BrakesShimano XT Trail 4 Piston | Metal Pads
  • ShiftersShimano SLX
  • Rear DerailleurShimano XT
  • Cranks & ChainringRace Face Aeffect Cinch | 32T | 24mm Spindle | SM = 165mm | MD - XL = 170mm
  • Bottom BracketShimano Threaded BBMT501-B
  • CassetteShimano SLX 10-51T 12spd
  • ChainShimano M7100
  • Front HubNovatec D791SB Sealed Boost 15mm
  • Rear HubDT Swiss 370 Boost 148mm | 18T Star-Ratchet
  • SpokesDT Swiss Competition 2.0/1.8/2.0
  • RimsWTB ST i30 TOUGH TCS 2.0 | 32H | Cushcore Trail Tire Inserts | Lightweight | Tire & Rim Protection
  • TiresMaxxis Assegai 2.5 WT 3C MaxxGrip EXO+ Tubeless Ready | Maxxis Minion DHR II 2.4 WT 3C MaxxTerra DD Tubeless Ready | Cushcore Trail Tire Inserts | Lightweight | Tire & Rim Protection
  • SeatpostX Fusion Manic Composite 30.9mm | SM = 150mm | MD = 170mm | LG - XL = 200mm
  • SaddleWTB Solano Fusion Form 142 | Cromoly Rails
  • Weight35.4 LBS|16 KGS
  • NotesWe make every effort to ensure accuracy, but reserve the right to update specifications & prices without notification.
Brakes
Brake

Shimano XT Trail 4 Piston | Metal Pads | F:Shimano RT66 203mm | R:Shimano RT66 180mm

Cockpit
Stem
Rocky Mountain 35 AM | 5° Rise | All Sizes = 40m
Grips
ODI Elite Pro Lock On
Headset
FSA Orbit NO.57E | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
Handlebar
Rocky Mountain AM | 780mm Width | 38mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp
General
Frame

SMOOTHWALL™ Carbon | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-9™ Adjustable Geometry | 2 Position Axle | 160mm Travel. SMOOTHWALL™ Carbon Rear Triangle

Groupset
Chain / Belt

Shimano M8100

Cassette

Shimano XT 10-51T

Shifters

Shimano XT

Bottom Bracket

Shimano SM-BBMT500

Rear Derailleur

Shimano XT

Gearing

Shimano Deore XT

Wheels & Tires
Tires

F: Maxxis Assegai 2.5 WT 3C MaxxGrip EXO+ Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready

Spokes

DT Swiss Competition 2.0/1.8/2.0

Wheel Size

27.5

Wheels

Race Face AR 30 | 32H | Tubeless Ready - Tape / Valves Incl

Front Hub

Rocky Mountain Sealed Boost 15mm

Rear Hub

DT Swiss 370 Boost 148mm | 18T Star-Ratchet

Tire

F: Maxxis Assegai 2.5 WT 3C MaxxGrip EXO+ Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready

Disclaimer

Depending on the situation, differences or deviations between specified and installed components are possible. Alternatively, installed components correspond to the quality level of the selected components. Errors and omissions are excepted.
