MERIDA

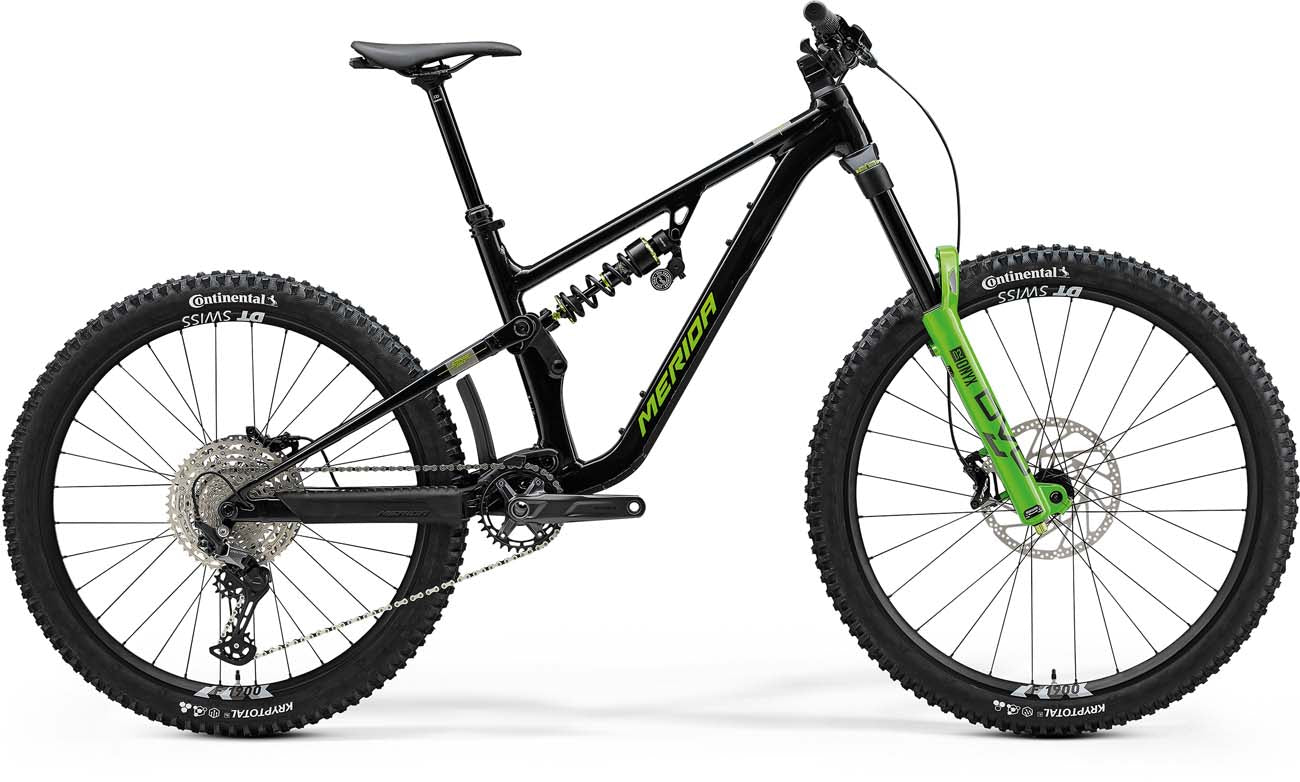

25 ONE SIXTY FR 800 III1

25 ONE SIXTY FR 800 III1

$3,748.00
$3,748.00 $5,199.00
Sale Sold out
Taxes included.
Colors METALLIC BLACK(GREY/GREEN)
Size
View full details

Hard-hitting and bike park proof. We've pumped up the attitude to make a hard rider's dream thanks to extra travel and a coil sprung rear shock, plus mixed wheel sizes on a tough aluminium frame.

*Full aluminium frame with FAST kinematic suspension and progressive geometry
*Mixed 29/27.5" wheels with tough casing tyres
*DVO Onyx 38 180 mm fork and DVO Jade X coil rear shock
*Tough DT Swiss F1900 wheelset paired with Continental Kryptotal tyres with Enduro front casing and Downhill rear
*Adjustable travel 230-40 mm dropper post
*Powerful TRP 4-piston hydraulic disc brakes with 220 mm front rotor

FRAME ONE-SIXTY LITE III; 171 STR mullet; MAT aluminium; 29x2.5" max. WHS; 148x12 AST; BSA BBR
SHOCK DVO Jade X D2; coil; spring rate: XS, S:300 M:350 L:400 XL:450
FORK DVO Onyx 38 D2; Air; 180 STR; tapered; 44mm Offset; 29"
BRAKE - FRONT TRP Trail Evo HD-M843; 4 piston
BRAKE - REAR TRP Trail Evo HD-M843; 4 piston
ROTOR - FRONT TRP RS01E; 220mm
ROTOR - REAR TRP RS01E; 203mm
CHAIN KMC X12
CHAINGUARD MERIDA EXPERT TR ISCG05
CHAINWHEEL Shimano Deore MT512; 32 ATC
CRANK/SIZE 170 mm for all sizes
BB SET Shimano BB-MT-501; 24mm
DERAILLEUR - FRONT
DERAILLEUR - REAR Shimano Deore M6100; SGS
FREEWHEEL Shimano Deore M6100; 10-51 ATC; 12 GER
PEDAL
GRIP MERIDA EXPERT EC
H-BAR MERIDA EXPERT TR II; MAT aluminium; 780 WHB; XS/S 18 RHB; M/L/XL 30 RHB
H-B STEM MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD
H-STEM/SIZE 40 mm
HUB - FRONT
HUB - REAR
AXLE - REAR MERIDA COMP TR; including removeable lever, 6/4mm allen key
RIM DT Swiss F1900; 110x15 WHF; 148x12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"
SADDLE MERIDA COMP SL; 25% recycled material; V-mount
SEAT CLAMP MERIDA EXPERT
SEAT POST MERIDA TEAM TR II; 34.9 DSP; 0 SSB; all sizes 30-230 SPT
SHIFTER - FRONT Shimano SL-MT500-IL
SHIFTER - REAR Shimano Deore M6100
TYRE - FRONT Continental Kryptotal-F; 29x2.4"; fold; TR; Enduro casing; Soft Compund
TYRE - REAR Continental Kryptotal-R; 27.5x2.4"; fold; TR; Downhill Casing; Soft Compound
BOTTLE CAGE
E-SHIFT PARTS-1
OTHER 1 Rear Brake Adapter PM 200mm to 203mm rotor
OTHER 2 Velcro strap & Tube Base Mount LITE
OTHER 3 V-mount adapter
OTHER 4
OTHER 5 MERIDA Multitool with saddlebox

Disclaimer

Depending on the situation, differences or deviations between specified and installed components are possible. Alternatively, installed components correspond to the quality level of the selected components. Errors and omissions are excepted.
