MERIDA

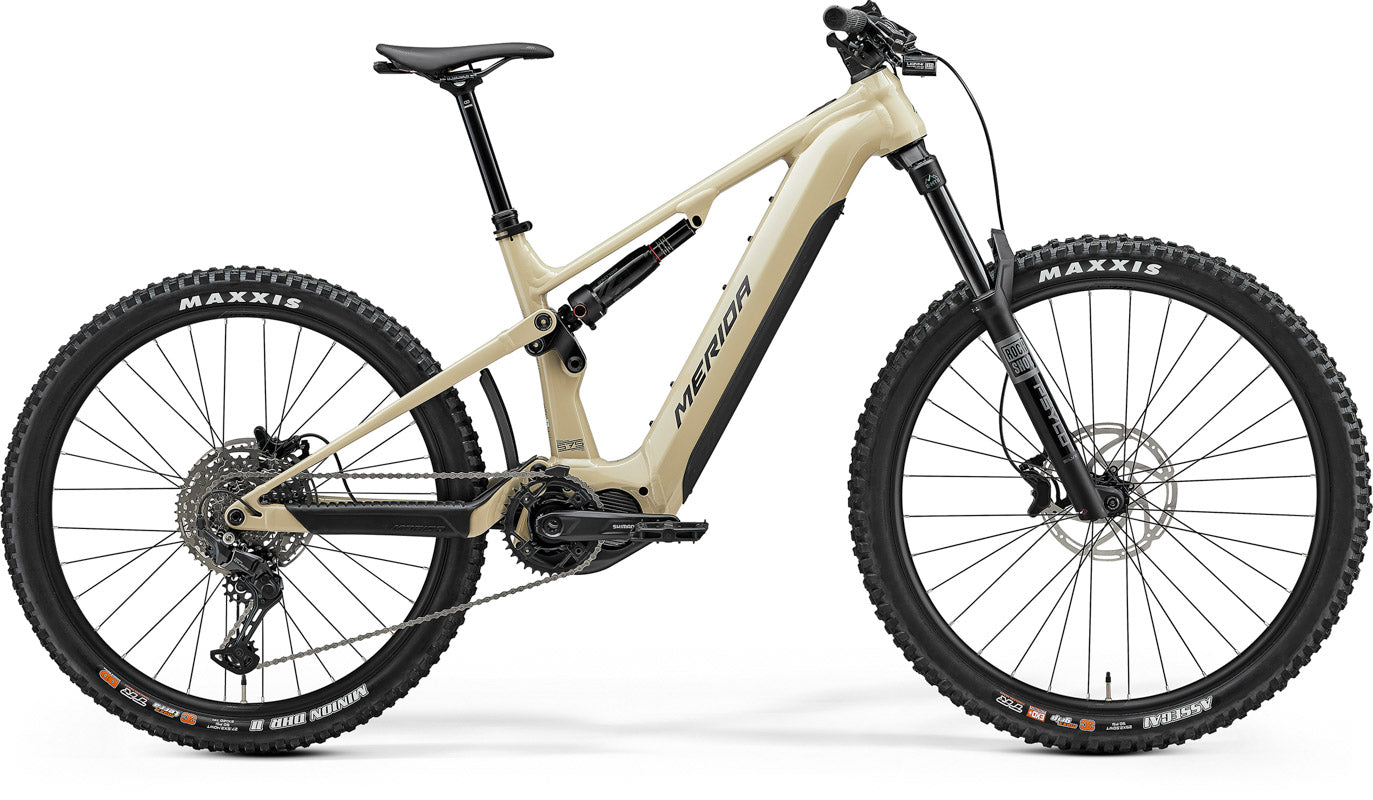

25 eONE SIXTY 575 IV1

25 eONE SIXTY 575 IV1

$5,589.00
$5,589.00
Sale Sold out
Taxes included.
Colors Earth POWDER(BLACK)
Size
View full details

Climb after climb, trail after trail, descent after descent, the eONE-SIXTY 575 is your trusted and capable e-enduro companion. Its full power motor, ample battery capacity and proven geometry and suspension will never let you down.

*Fourth generation LITE aluminium frame with 174 mm rear wheel travel
*RockShox Psylo Silver fork with 160 mm travel and Super Deluxe rear shock
*Highly quality Shimano CUES 10-speed drivetrain and MERIDA tubeless-ready wheelset
*User-removable 750 Wh battery with optional 360 Wh range extender, powerful Shimano EP801 drive unit
*Mixed wheel size as standard with option to full 29"
*Reach-based AGILOMETER sizing system with long-travel dropper posts on all sizes

FRAMEeONE-SIXTY LITE IV; MAT aluminium; 160 STR; 29x2.6" max. WHS; 148x12 AST; intube ; 750 WhSHOCKRock Shock DeluxeFORKRock Shock Psylo Silver R; 160 STR; Tapered; 44mm fork offset; 29x2.6" max WHSBRAKE - FRONTTektro Gemini M535; 4 pistonBRAKE - REARTektro Gemini M535; 4 pistonROTOR - FRONTTektro TR203-45; 203mmROTOR - REARTektro TR203-45; 203mmCHAINShimano LG500CHAINWHEELFSA 1x Steel Chainring; 36 ATCCRANK/SIZEShimano FC-EM600; 165 mm for all sizesBB SETincludedDERA - FRONTDERA - REARShimano Cues U6000; GSFREEWHEELShimano Cues LG400; 11-48 ATC; 10 GERPEDALVP VPE-533GRIPMERIDA EXPERT ECH-BARMERIDA EXPERT eTR; 780 WHB; XS,S 20RHB ; M,L,XL 30RHBH-B STEMMERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mountSTEM/SIZE40 mm all sizesHEAD SETAcros ICR MERIDA EXTERNAL neck w/ BlocklockHUB - FRONTShimano TC500-B; 110x15 WHF; 32 SPH; CenterlockHUB - REARShimano TC600-HM-B; 148x12 WHR; 32 SPH; CenterlockAXLE - FRONTAXLE - REARMERIDA EXPERT TR; including removeable lever, 6/4mm allen keyRIMMERIDA EXPERT TR II; 110x15 WHF; 148x12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"RIM TAPESADDLEMERIDA COMP SL; V-mount; incl. MERIDA minitoolSEAT CLAMPMERIDA EXPERTSEAT POSTMERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XS: 125 SPT - S: 150 SPT - M/L: 200 SPT - XL: 230 SPTSHIFTER - FRONTShimano SL -MT500-LSHIFTER - REARShimano CUES U6000-10INNER TUBE27.5*2.3/3.0(2.4/2.8) F.V 48L THIN(1MM)TYRE - FRONTMaxxis Assegai; 29x2.5 "; fold; TR EXO+ 3C MaxxGripTYRE - REARMaxxis Minion DHR II; 27.5x2.4 "; fold; 3C DD TR MaxxTerraBOTTLE CAGECARRIERFENDEREOF-204KICKSTANDLIGHT - FRONTLEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom MountLIGHT - REARLEZYNE LED FEMTO USB REAR STVZOFRAME LOCKDRIVE UNITShimano EP801; 85NmDRIVE COVERCR-010 + CR011BATTERYTrendpower Internal Battery Gen 2; 750WhBATTERY CHARGERTrendpower EU Smart Charger; 4ABATTERY LOCKAbus keyDISPLAYShimano SC-EM800

Disclaimer

Depending on the situation, differences or deviations between specified and installed components are possible. Alternatively, installed components correspond to the quality level of the selected components. Errors and omissions are excepted.
