MERIDA

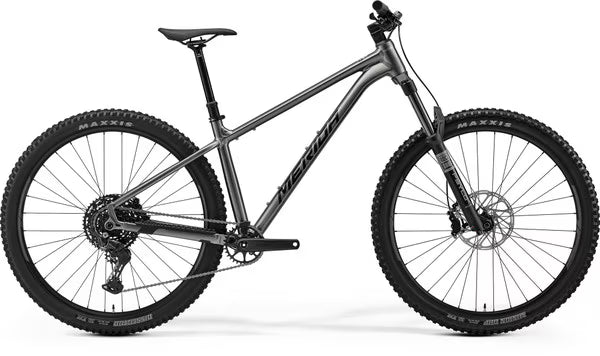

26 BIG TRAIL 500 II1

26 BIG TRAIL 500 II1

$1,899.00
$1,899.00 $2,199.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Colors GUNMETAL GREY(BLACK)
Size

Shipping & Pickup Options

  • Shipping: We ship Australia-wide. Shipping charges will be shown at checkout after you enter your address.
  • Pickup: Available at our store: 271 Smith St. Fitzroy VIC
View full details

The trail hardtail to beat. Fast and fun handling wrapped up in a tough, trail-ready package. Our new BIG.TRAIL 500 is the real deal for anyone after no-nonsense riding thrills.

*Durable double butted aluminium frame
*140 mm RockShox Psylo fork with 35 mm chassis for incredible stiffness
*Progressive trail bike geometry with long reach, slack head angle and steep seat angle
*29er wheels specced with 2.5" front and 2.4" rear tyre with aggressive trail pattern
*Extremely low standover height paired with long travel dropper posts
*Powerful 4-piston Shimano front brake paired with lightweight 2-piston brake

SEASON 2026
AXLES R: MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
BRAKES F: Sram DB4; 4 piston | R: Sram DB4; 4 piston
CASSETTE Shimano LG300; 11-48 ATC; 10 GER
CHAIN KMC xGlide
COLOUR GUNMETAL GREY(BLACK)
CRANKSET MERIDA Expert TR II; 32 ATC; 165mm XSHORT, SHORT, MID and LONG; 170mm XLONG
DERAILLEUR REAR Shimano CUES U6000; GS
FORK Rock Shox Psylo Silver RC; Air; 140 STR; platform
FRAME BIG.TRAIL TFS II; MAT aluminium; 29x2.4" max. WHS; 148x12 AST; BSA BBR
GRIP MERIDA COMP TR
HANDLEBAR MERIDA COMP TR II; MAT aluminium; 780 WHB; 35 RHB
HANDLEBAR STEM MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD; 40 mm
HEADSET Acros ICR MERIDA EXTERNAL neck; Upper and lower IPS sealing
HUBS F: Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock | R: Shimano TC500-HM-B; 148x12 WHR; 32 SPH; Centerlock
RIM MERIDA COMP TR; 29 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included)
ROTOR FRONT Sram CenterLine; 200mm
ROTOR REAR Sram CenterLine; 180mm
SADDLE MERIDA COMP SL; 25% recycled material; V-mount
SEAT CLAMP MERIDA EXPERT
SEAT POST MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XSHORT: 150 SPT - SHORT/MID : 170 SPT - LONG: 200 SPT - XLONG: 230 SPT
SHIFTERS F: Shimano SL-MT500-L | R: Shimano CUES U6000
SPOKES Double Butted Black stainless w/black nipples
TYRES F: Maxxis Minion DHF; 29x2.5"; fold; TR EXO Dual | R: Maxxis Dissector; 29x2.4"; fold; TR EXO Dual

Disclaimer

Depending on the situation, differences or deviations between specified and installed components are possible. Alternatively, installed components correspond to the quality level of the selected components. Errors and omissions are excepted.
