MERIDA

24 ONE SIXTY 700

24 ONE SIXTY 700

$4,278.00
$4,278.00
Sale Sold out
Taxes included.
Colors - SILK BRONZE (BLACK/WHITE)
Size
View full details

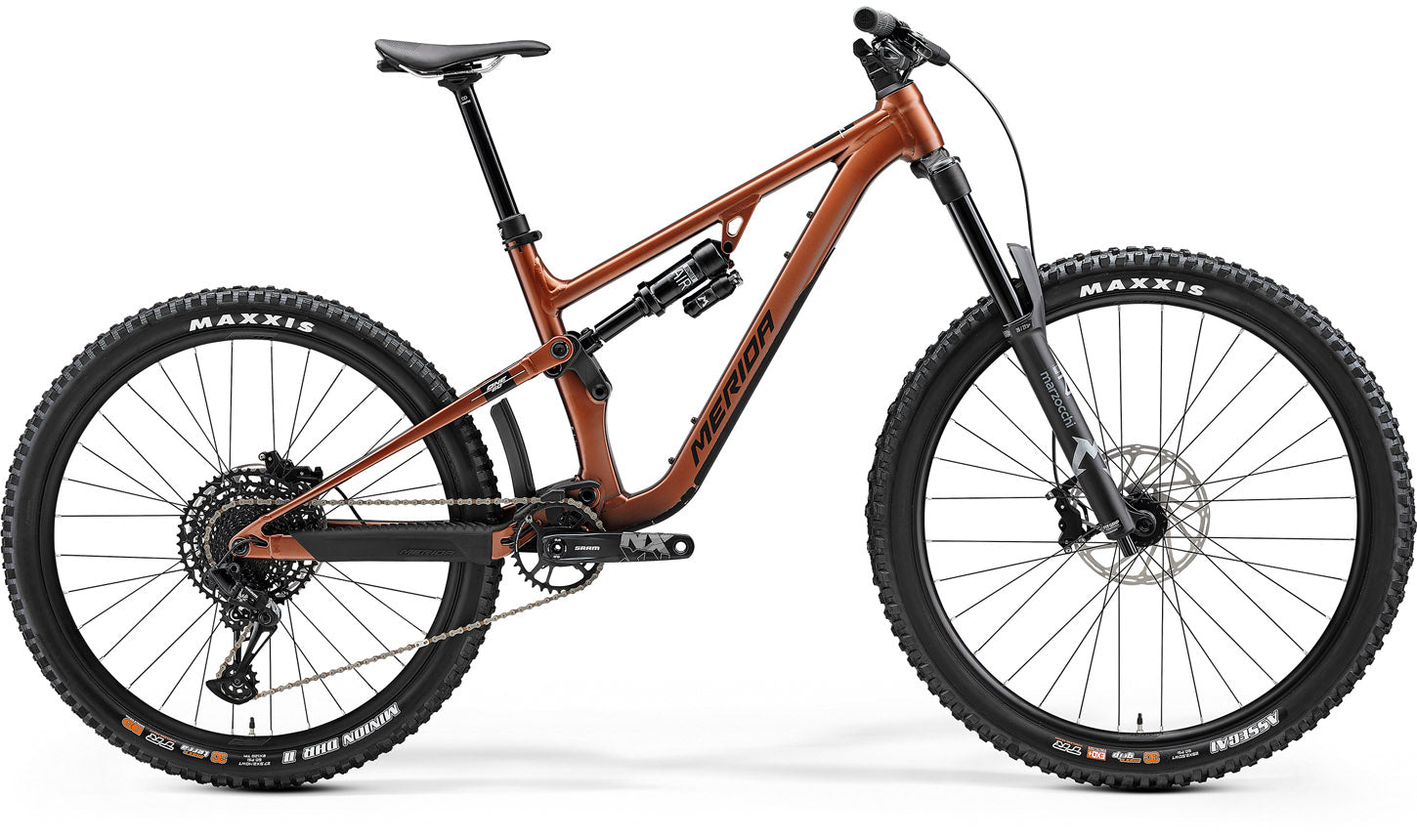

The ONE-SIXTY 700 gets all the cutting edge enduro performance of our radical new design but with a high-value and fully featured all-aluminium frame. That means hard-hitting modern geometry with our new FAST kinematic suspension that delivers a chaos taming ride alongside quality Marzocchi and Fox suspension. Shimano’s proven 12-speed Deore drivetrain means reliable shifts time after time, while four-piston brakes make short work of keeping everything under control.

Evolution or revolution? How about both? The 2022 ONE-SIXTY is a radical, all-new design that pushes our hard-hitting enduro platform to new heights. Just as well, because once it’s there it’s ready to rip the longest, toughest descents too. Our new suspension system uses a flexstay design with an adjustable rocker, so whether you choose to run it as a full 29er (162 mm travel) or mixed 29/27.5” setup (171 mm travel), the geometry is preserved. There’s a radically steep 79° seat tube angle for goat-like climbing and slack 64° head angle plus 170 mm fork to deal with downhill trail chaos. New sizing allows riders to run a longer or shorter reach frame independently of their height, while suspension becomes more progressive as you size up, all with long-travel dropper posts. Our WIRE PORT cable routing plus reliable threaded bottom bracket round out the package, while carbon frames offer on-board tool storage and FidLock magnetic bottle cages.

FRAMEONE-SIXTY LITE III; 171 STR mullet / 162 STR 29"; MAT aluminium; 29x2.5" max. WHS; 148x12 AST; BSA BBRSIZESXShort-Short-Mid-Long-XLongFORKMarzocchi Z1; Air; 170 STR; Tapered; 44mm fork offset; 29x2.6" max. WHSSHOCKMarzocchi Bomber Air; platformGEARS1 x 12CRANKSETSram NX Eagle DUB; 32 ATCCRANK LENGTH170 mm for all sizesBOTTOM BRACKETSram BB DUB BSA 73 MTB WIDECASSETTESram PG-1210 Eagle; 10-50 ATC; 12 GERCHAINSram SX EagleREAR DERAILLEURSram NX EagleSHIFTER-REARSram NXDROPPER LEVERShimano SL -MT500-ILBRAKE-FRONTSram DB8; 4 pistonBRAKE-REARSram DB8; 4 pistonROTOR-FRONTSram CenterLine; 200mmROTOR-REARSram CenterLine; 200mmHANDLEBARMERIDA EXPERT TR II; MAT aluminium; 780 WHB; XS/S 18 RHB; M/L/XL 30 RHBSTEMMERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASDSTEM SIZE40 mm all sizesHEAD SETAcros ICR MERIDA EXTERNAL neck; Upper and lower IPS sealingSEAT POSTMERIDA TEAM TR; 34.9 DSP; 0 SSB; all sizes 30-230 SPTSADDLEMERIDA EXPERT SL; V-mount; incl. MERIDA minitoolSPOKESDouble Butted Black stainlessHUB-FRONTNovatec SL-Team D041SB-B15; 110x15 WHF; 32 SPH; 6 boltHUB-REARNovatec SL-TEAM D462SB-S3S-B12-11S; 148x12 WHR; 32 SPH; 6 boltAXLE-REARMERIDA EXPERT TR; including removeable lever, 6/4mm allen keyRIMSMERIDA EXPERT TR II; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); rear 27.5" up to Size M / L & XL rear 29"TYRE-FRONTMaxxis Assegai; 29x2.5"; fold; TR EXO+ 3C MaxxGripTYRE-REARMaxxis DHR II; 27.5x2.4" XS/S/M 29x2.4" L/XL; fold; TR DD 3C MaxxTerraBOTTLE CAGE-FENDER-E-SHIFT PARTS-OTHERMERIDA Multitool with saddleboxOTHERVelcro strap & Tube Base Mount CFMAX RIDER WEIGHT135kg

Disclaimer

Depending on the situation, differences or deviations between specified and installed components are possible. Alternatively, installed components correspond to the quality level of the selected components. Errors and omissions are excepted.
