MERIDA

24 ONE FORTY 6000

24 ONE FORTY 6000

Regular price $4,288.00
Sale price $4,288.00 Regular price
Sale Sold out
Taxes included.
Colors - GREY (BLACK/SILVER)
Size
View full details

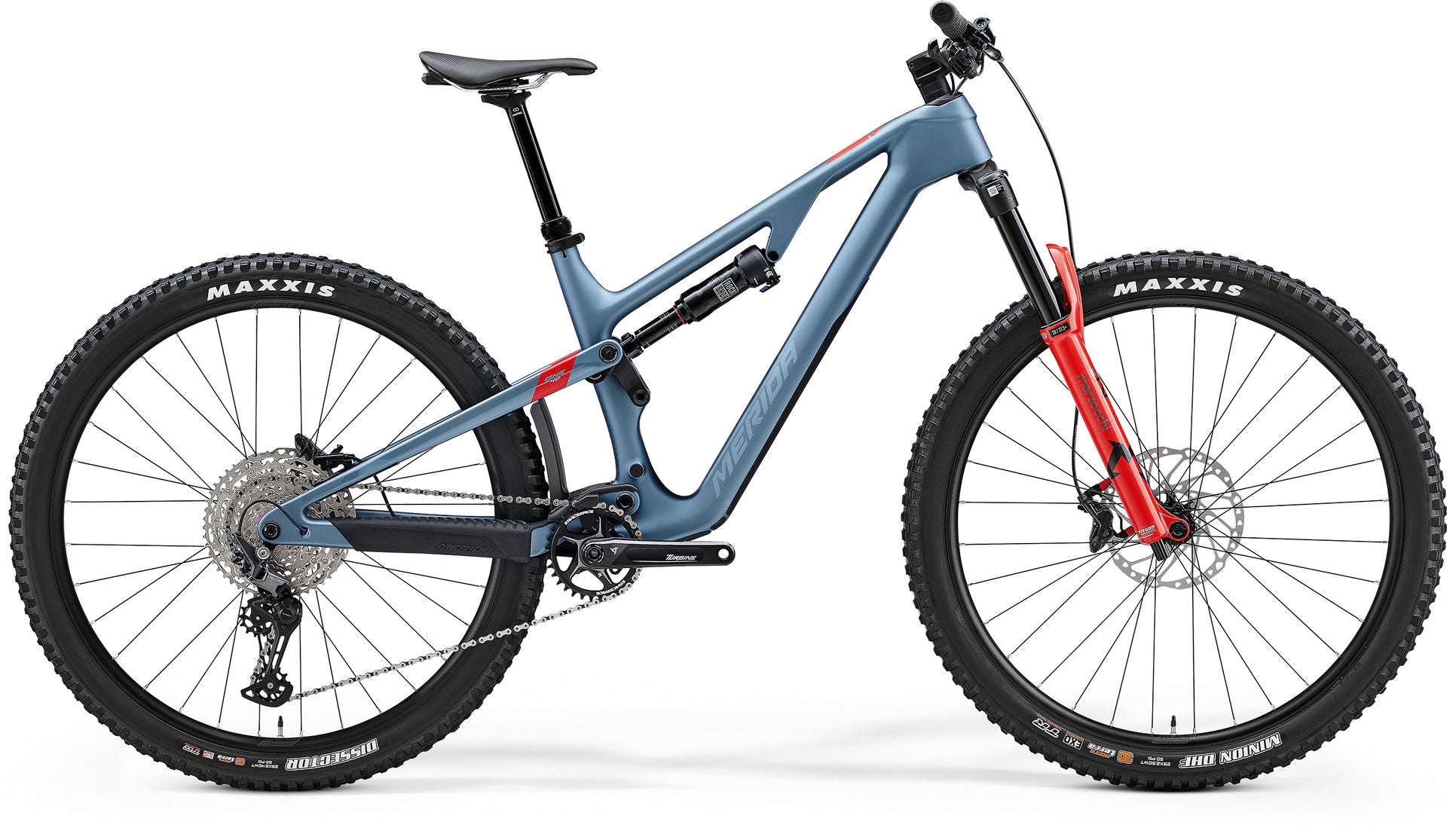

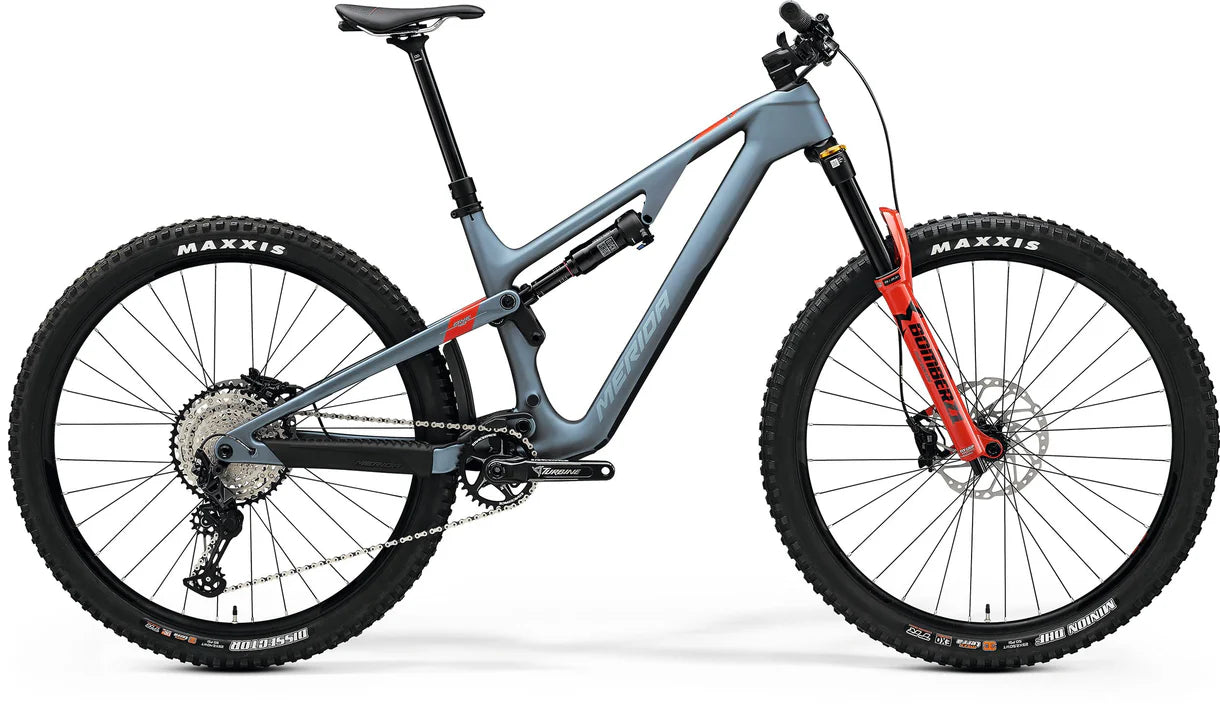

With a stunning, all-carbon chassis the ONE-FORTY 6000 represents a leap forwards in what you should expect your trail bike to be capable of. Our radical test and award-winning geometry delivers the goods on the most technical climbs or the toughest descents, with sizing perfectly tuned to what the rider wants. The 29er wheels work in perfect harmony with our FAST kinematic suspension with Fox shock and 150 mm Marzocchi fork.

The test and award-winning ONE-FORTY is the ultimate trail bike, made for the toughest trails in the world. It’s the pinnacle of modern trail riding, with a super-steep 80° seat angle, low front end and bottom bracket allow it to clear the most technical climbs, while longer reach figures across all sizes and a well-balanced 65° head angle mean it’s still more than capable of ripping any descent. With our AGILOMETER sizing system, riders can run a longer or shorter reach frame independently of their height, with suspension that becomes more progressive as you size up to better cope with heavier/harder riders. We’ve focussed on weight reduction and rolling speed too, for improved efficiency. All bikes come with long travel dropper posts, WIRE PORT cable routing and a reliable threaded bottom bracket plus carbon frames have on-board tool storage and Fidlock magnetic bottle cages.

01. FRAMEONE-FORTY CF4 III; 143 STR 29"; MAT carbon; 29x2.5" max. WHS; 148x12 AST; BSA BBR02. SIZESXShort-Short-Mid-Long-XLong03. FORKMarzocchi Z1; Air; 150 STR; Tapered; 44mm fork offset; 29.5x2.6" max. WHS04. SHOCKRock Shox Deluxe Select+; lockout05. GEARS1 x 1206. CRANKSETRace Face Turbine; 32 ATC07. CRANK LENGTH170 mm-S, 175 mm-M up08. BOTTOM BRACKETBB, BSA 73mm– Ř30mm, Ext. Seal09. CASSETTEShimano Deore M6100; 10-51 ATC; 12 GER10. CHAINKMC X1211. REAR DERAILLEURShimano Deore M6100 Shadow+; SGS12. SHIFTER - REARShimano XT; Multi Release13. DROPPER LEVERShimano SL -MT500-IL14. BRAKE - FRONTShimano Deore M6120; 4 piston15. BRAKE - REARShimano Deore M6120; 4 piston16. ROTOR - FRONTShimano RT64; 203 mm17. ROTOR - REARShimano RT64; 203 mm18. HANDLEBARMERIDA EXPERT TR II; MAT aluminium; 780 WHB; XS/S 18 RHB; M/L/XL 30 RHB19. STEMMERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD20. STEM SIZE40 mm all sizes21. HEAD SETAcros ICR MERIDA INTEGRATED neck; Upper and lower IPS sealing22. SEAT POSTMERIDA TEAM TR; 34.9 DSP; 10 SSB; all sizes 30-230 SPT23. SADDLEMERIDA EXPERT SL; V-mount; incl. MERIDA minitool24. SPOKESDouble Butted Black stainless25. HUB - FRONTShimano TC500-B; 110x15 WHF; 32 SPH; Centerlock26. HUB - REARShimano TC600-MS-B; 148x12 WHR; 32 SPH; Centerlock27. AXLE - REARMERIDA EXPERT TR; including removeable lever, 6/4mm allen key28. RIMSMERIDA EXPERT TR II; 110x15 WHF; 148x12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); 29"29. TYRE - FRONTMaxxis Minion DHF; 29x2.5"; fold; TR EXO 3C MaxxTera30. TYRE - REARMaxxis Dissector; 29x2.4"; fold; TR EXO+ MaxxTerra31. BOTTLE CAGEFidlock Integrated Base & MERIDA Bottle32. FENDER33. E-SHIFT PARTS34. OTHERMERIDA Multitool with saddlebox35. OTHERVelcro strap & Tube Base Mount CF36. MAX RIDER WEIGHT135kg

Disclaimer

Depending on the situation, differences or deviations between specified and installed components are possible. Alternatively, installed components correspond to the quality level of the selected components. Errors and omissions are excepted.
