MERIDA

Big Trail 500

Big Trail 500

$1,678.00
$1,678.00
Sale Sold out
Taxes included.
Colors Mokka/Brown
Size
View full details

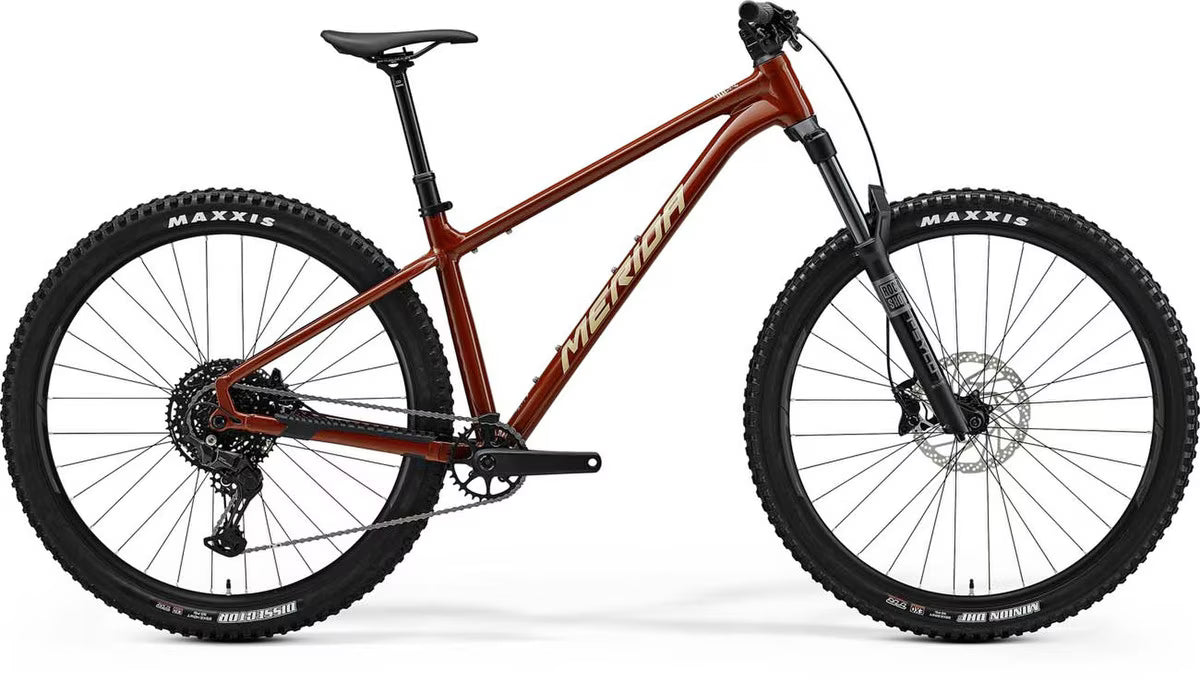

The Merida Big.Trail 500 Hardtail Trail Bike is designed for tackling trails and off-road adventures. It features a Rock Shox Psylo Silver RC Fork with 140mm travel for handling bumps, and 29-inch Maxxis Minion and Dissector tires for grip. The Shimano CUES 1x11 drivetrain ensures efficient power transfer, while Shimano hydraulic disc brakes provide reliable stopping power in all conditions. The Merida Expert dropper post aids in navigating technical descents.







SEASON 2025
CHAIN KMC xGlide
CHAINWHEEL MERIDA Expert TR II; 32 ATC
CRANKSET 165mm XSHORT and SHORT; 170mm MID, LONG und XLONG
DERAILLEUR REAR Shimano CUES U6000; GS
FORK Rock Shox Psylo Silver RC; Air; 140 STR; platform
FRAME BIGTRAIL TFS II MAT aluminium 29x25 max WHS 148x12 AST BSA BBR
FREEWHEEL Shimano LG300; 11-48 ATC; 10 GER
GRIP MERIDA COMP EC
HANDLEBAR MERIDA EXPERT TR II; MAT aluminium; 780 WHB; 18 RHB
HANDLEBAR STEM MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD
RIM MERIDA COMP TR; 29 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included)
ROTOR FRONT Shimano RT30; 203mm
ROTOR REAR Shimano RT30; 180mm
SADDLE MERIDA COMP SL; 25% recycled material; V-mount
SEAT CLAMP MERIDA EXPERT
SEAT POST MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XS: 150 SPT，S: 170 SPT，M/L: 200 SPT，XL: 230 SPT
TYRE FRONT Maxxis Minion DHF; 29x2.5"; fold; TR EXO Dual
TYRE REAR Maxxis Dissector; 29x2.4"; fold; TR EXO Dual
FEATURES
Lightweight alloy frame
Rock Shox Psylo Silver RC Fork with 140mm travel
Shimano CUES 1x10 gears
Shimano hydraulic disc brakes
Maxxis Minion and Dissector tyres
Merida Expert TR II dropper post

Disclaimer

Depending on the situation, differences or deviations between specified and installed components are possible. Alternatively, installed components correspond to the quality level of the selected components. Errors and omissions are excepted.
