MERIDA

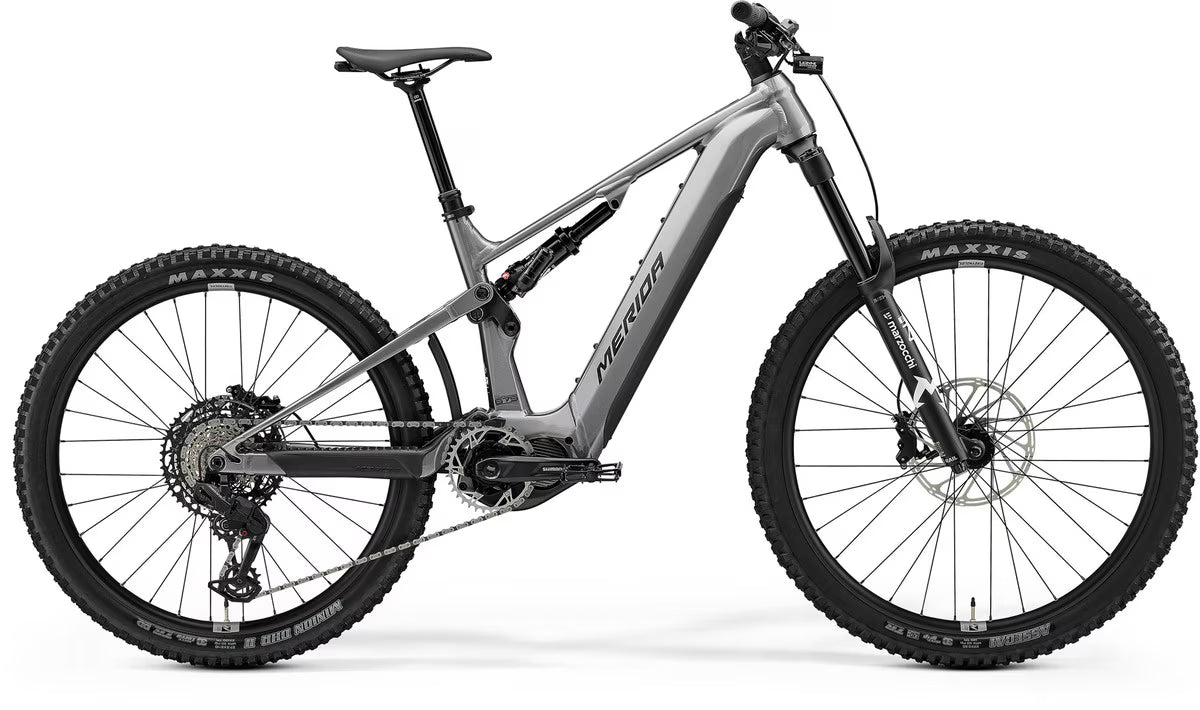

Merida eOne-Sixty 675

Merida eOne-Sixty 675

Regular price $4,998.00
Sale price $4,998.00 Regular price $8,799.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Colors GUNMETAL GREY(BLACK)
Size

Shipping & Pickup Options

  • Shipping: We ship Australia-wide. Shipping charges will be shown at checkout after you enter your address.
  • Pickup: Available at our store: 271 Smith St. Fitzroy VIC
View full details

Say hello to a huge range and ride fun without saying goodbye to your budget. The eONE-SIXTY 675 gets a durable aluminium frame and user-removable 712 Wh battery with an optional 360 Wh range extender, but we combine our award-winning handling and suspension with wallet-friendly kit to give you maximum bang for your buck. A stout Marzocchi Z1 170 mm fork and Bomber Air shock keep trail chaos under control, while the SRAM Eagle 70 direct-mount drivetrain is tough enough for e-bike use, day in, day out.

With the latest eONE-SIXTY, the next descent is always about to start. With an all-aluminium frame, it offers maximum value and maximum battery range, thanks to a powerful drive unit paired with a removable 712 Wh battery and optional 360 Wh range extender. The only reason to stop will be because you have to. With our incredibly capable geometry derived from the award-winning ONE-SIXTY enduro range, we've got handling that'll help you conquer the toughest climbs as well as the most grin-inducing descents, while our proven FAST kinematic suspension will take care of anything the trail throws at it. This low-maintenance flexstay design offers 174 mm of rear wheel travel to go with 170 mm at the front, with size-tuned progression to maximise performance for all sizes of riders. You can run it with the latest coil shocks without any worries too. With mixed size 29" front and 27.5" rear wheels as standard for playful handling, you can switch to a focused full 29er setup without messing up the geometry, thanks to our flip chip design. With low standover heights across all sizes, you can choose between a longer frame for more stable handling or a shorter one for an agile feel, while some models feature our ground-breaking 30-230 mm travel-adjustable dropper post. *except eONE-SIXTY 400

SEASON 2026
ACCESSORIES Fender: EOF-204; MERIDA Multitool with saddlebox
AXLES R: MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
BRAKES F: Sram DB6 stealth; 4 piston | R: Sram DB6 stealth; 4 piston
CASSETTE Sram CS XS 1270 T-TYPE 10-52; 12 GER
CHAIN Sram Eagle 70 Flattop Chain
COLOUR GUNMETAL GREY(BLACK)
CRANKSET Sram XX Eagle Transmission E-MTB for Steps; 36 ATC; Shimano FC-EM600; 165 mm for all sizes
DERAILLEUR REAR Sram Eagle 70 Transmission
FORK Marzocchi Z1 eMTB; Air; 170 STR; Tapered; 44mm fork offset; 29x2.6" max WHS
FRAME eONE-SIXTY LITE IV; MAT aluminium; 160 STR; 29x2.6" max. WHS; 148x12 AST; intube ; 750 Wh
GRIP MERIDA EXPERT EC
HANDLEBAR MERIDA EXPERT eTR; 780 WHB;
HANDLEBAR STEM MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount; 40 mm all sizes
HEADSET Acros ICR MERIDA EXTERNAL neck w/ Blocklock
HUBS F: Novatec SL-ELITE D041SB-B15; 110x15 WHF; 32 SPH; 6 bolt | R: Novatec SL-TEAM D462SB-S3S-B12-11S; 148x12 WHR; 32 SPH; 6 bolt
LIGHT(S) F: Lezyne Hekto StVZO E350+ Reverse; reverse MERIDA Custom Mount | R: LEZYNE LED FEMTO USB-C REAR STVZO
PEDALS VP VPE-527
RIM Reynolds 309 Enduro Comp; 30 IWR; MAT aluminium; Tubeless ready (tubeless tape installed); front 29"; rear 27.5"
ROTOR FRONT Sram CenterLine; 220mm
ROTOR REAR Sram CenterLine; 200mm
SADDLE MERIDA COMP SL; V-mount; incl. MERIDA minitool
SEAT CLAMP MERIDA EXPERT
SEAT POST MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XS: 125 SPT - S: 150 SPT - M: 170SPT - L: 200 SPT - XL: 230 SPT
SHIFTERS F: Sram Dropper Lever MMX | R: Sram Eagle 70 Transmission Shifter
SHOCK Marzocchi Bomber Air; platform
SPOKES Black stainless ; black nipples
TYRES F: Maxxis Assegai; 29x2.5 "; fold; TR EXO+ 3C MaxxGrip | R: Maxxis Minion DHR II; 27.5x2.4 "; fold; 3C DD TR MaxxTerra
MOTOR/DRIVE UNIT Shimano EP801; 85Nm; 25KPH
MOTOR BRAND Shimano
MOTOR MODEL STePS EP801
MOTOR POWER (WATTS) 250
MOTOR TORQUE (NM) 85
BATTERY Shimano BT-EN817; 712Wh
BATTERY BRAND Shimano
BATTERY MODEL Shimano BT-EN817
BATTERY SIZE (WATT-HOURS) 712
EBIKE DRIVE SYSTEM Mid Drive
DISPLAY Shimano SC-EM800

Disclaimer

Depending on the situation, differences or deviations between specified and installed components are possible. Alternatively, installed components correspond to the quality level of the selected components. Errors and omissions are excepted.
