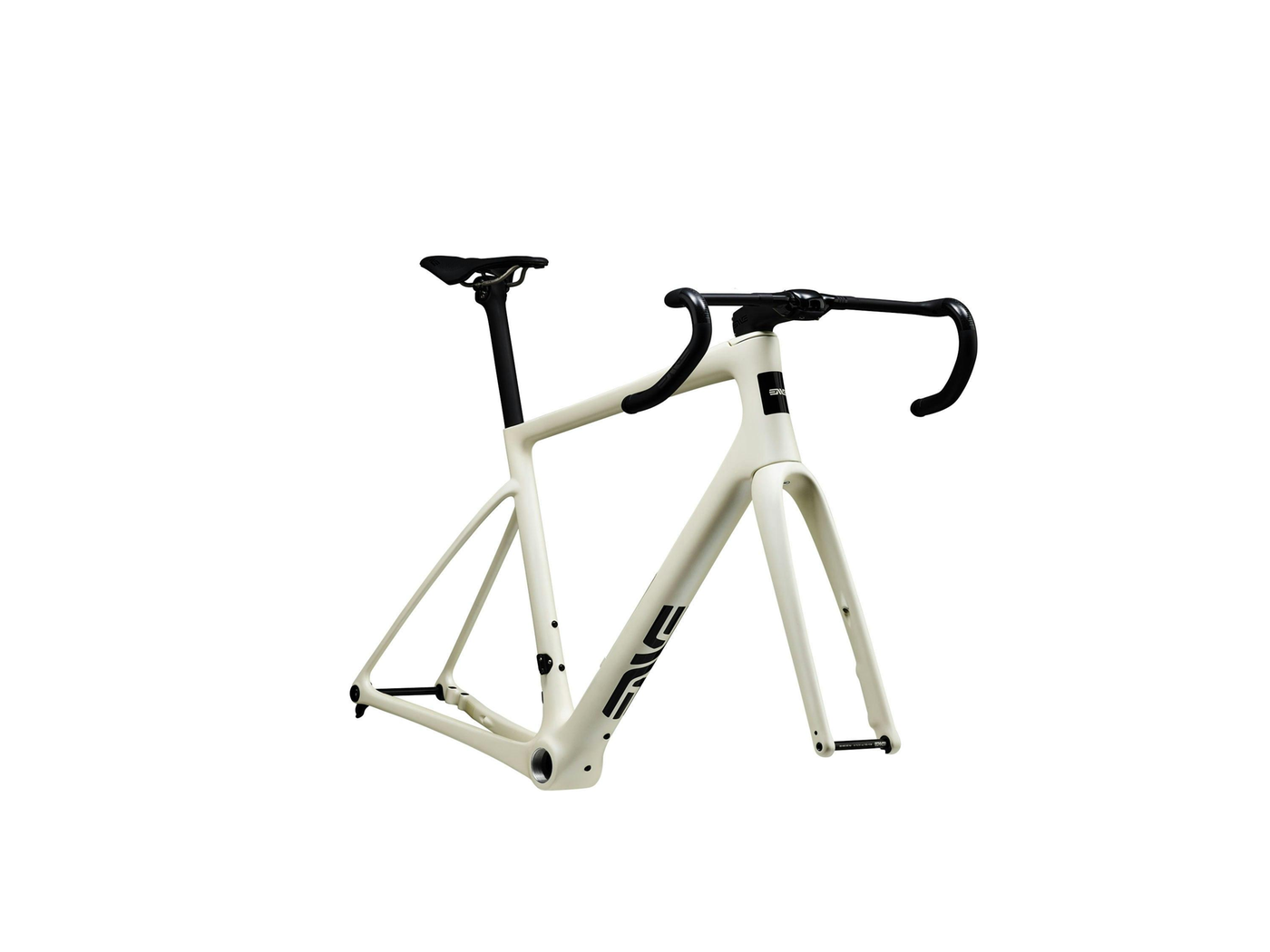

FRAY FRAMESET FRAY SALT

Size: Small
Colour: White

FRAME FORK, BAR, STEM, SEAT POST
Real-World Fast™ aero optimization
Geometry optimized for 31mm - 35mm tires
Tire clearances fits up to a 700 x 40mm (1x), 700 x 38mm (2x)
ENVE Cargo Bay integrated downtube storage allows in-frame storage solution
Top tube and downtube mounts for adding bags, bottle cage, tools, or any other gear needed to tack on for big adventure rides
Aero tube shapes & design that complements SES rim shapes
Universal Derailleur Hanger (UDH) compatible allows choice of drivetrain
Frame Weight 900g (Size 56cm Painted, No Hardware)
FRAME FORK, BAR, STEM, SEAT POST
Frame Material ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat Mount Disc, Threaded &47 BB, Internal Routing, Fender Compatible
Fork Material ENVE M.O.D Carbon, 12x100 Thru-Axle, Flat Mount Disc, Internal Routing, Fender Compatible
Target Application All Road / Endurance / Mixed Surface / Sportif / Fondo
Sizes (cm) 47, 50, 52, 54, 56, 58, 60
Fork Rake 55, 51, 47, 43
Frame Size/Fork Rake 47cm/55, 50cm/55, 52cm/51, 54cm/51,
56cm/47, 58cm/47, 60cm/43
Frame Weight 900g +/- 2% (Size 56, Painted, No Hardware)
Headset ENVE Integrated IS52/IS52 Internal Drop-In
Headset Bearing 1.5" IS52 Upper and Lower
Seat Post Diameter ENVE Aero
BB Type T47 Inboard Bearing
Brake Mount Flat Mount
Front Axle 12×100 (Total Length: 122, TP:1.5, TL:15)
Rear Axle 12×142 (Total Length: 168, TP:1.0, TL:14)
Minimum Tire Size 27mm
Optimal Tire Size 31mm - 35mm
Maximum Listed Tire Clearance 1x 40mm
Maximum Listed Tire Clearance 2x 38mm
In-Frame Storage Yes (2 Storage Bags included - 18.22 cubic cm each)
Frame Routing Internal
Waterbottle Capacity 3
Top Tube Mounts Yes
Fender Compatible Yes
Wheel Size 700c
COMPONENT COMPATIBILITY
Handlebars ENVE IN-Route
Stem ENVE IN-Route
Seat Posts Aero 275mm x 0 Offset
Aero 350mm x 0 Offset
Aero 350mm x 20 Offset
DRIVETRAIN COMPATIBILITY
Shimano Mechanical 1x Yes
Shimano Mechanical 2x Yes
Shimano Electronic Di2 (1x/2x) Yes
SRAM Mechanical 1x Yes
SRAM Mechanical 2x No (Fray requires continuous housing for FD)
SRAM AXS (1x/2x) Yes
Campy Mechanical 1x Yes
Campy Mechanical 2x No (Fray requires continuous housing for FD)
Campy Electronic EPS Not Compatible
BRAKE ROTORS
Fork
Fork is 160mm only
Frame
Rear brake/frame is 140mm or 160mm with adapter
